EASEMED SPARSH 400 Advance 400W Touch Screen Electrosurgical Generator | Monopolar & Bipolar Cautery Machine | Digital Diathermy Electrosurgery Unit | Complete Accessories Set

Name: EASEMED SPARSH 400 400W Touch Screen Electrosurgical Generator | Monopolar & Bipolar Cautery
Brand: TSW
SKU: EASEMED-SPARSH400
Price: 79999.0 INR
Availability: InStock

Rs. 79,999.00

~~Rs. 95,000.00~~ Rs. 79,999.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Estimated Dispatch: 2–4 Business Days

ISO & CE Certified
Express Delivery
Secure Payment

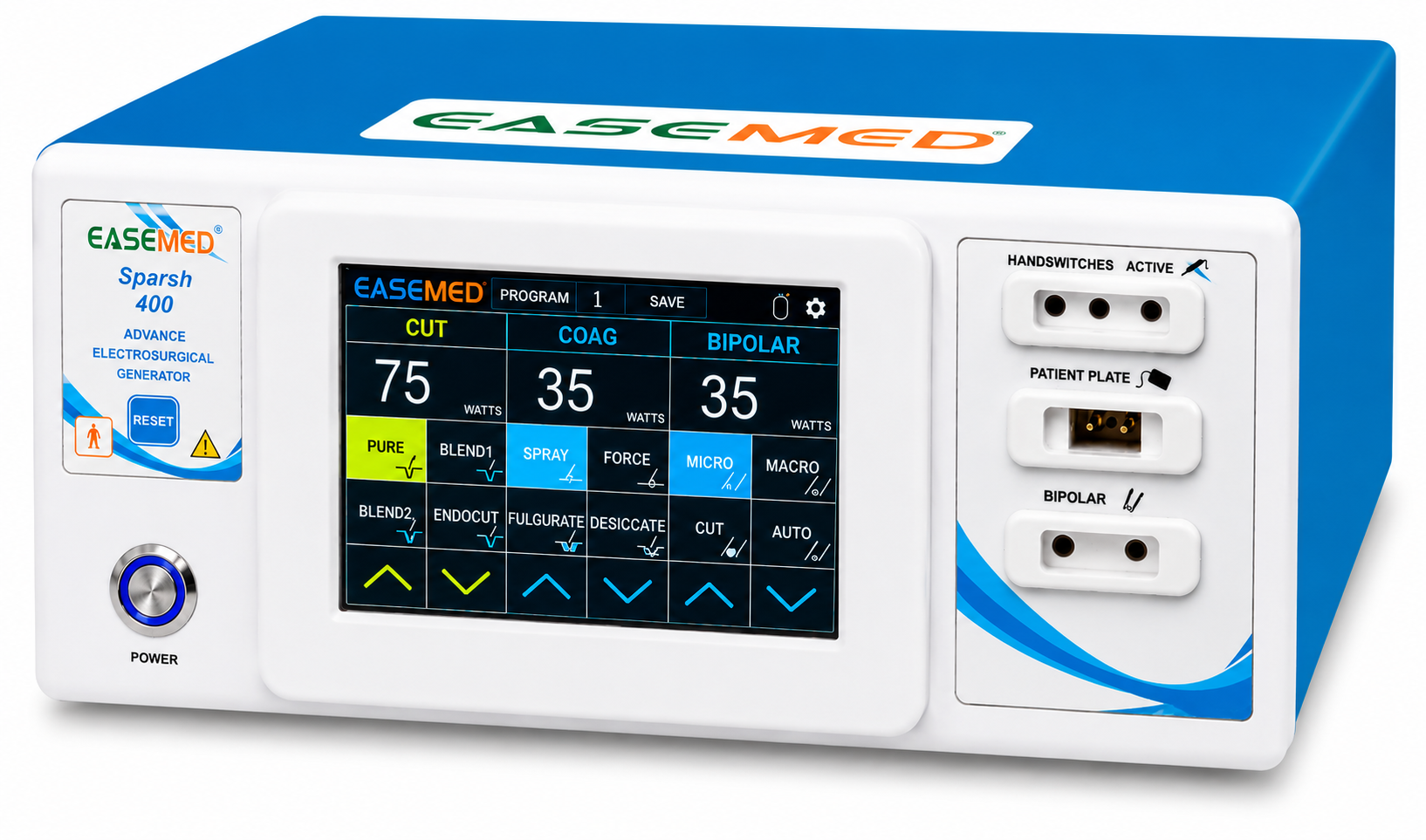

The EASEMED SPARSH 400 Advance Touch Screen Electrosurgical Generator is a high-performance 400W digital cautery machine engineered for precise monopolar and bipolar electrosurgery across a wide range of surgical specialties. Its advanced microprocessor-controlled platform provides stable high-frequency energy output for controlled cutting and coagulation while maintaining reliable performance during demanding surgical procedures.

The SPARSH 400 features a large 7-inch LCD touch screen display with an intuitive graphical interface for quick selection and adjustment of surgical modes. The system supports multiple monopolar cutting modes including Pure Cut, Blend 1, Blend 2 and Endocut, along with coagulation modes such as Spray, Force, Fulgurate and Desiccate. Bipolar operation includes Micro, Macro, Bipolar Cut and Auto Bipolar modes for versatile surgical applications.

With 99 user-programmable settings, surgeons can store frequently used operating parameters for faster setup and consistent performance. Integrated safety features including automatic self-test, output monitoring, overload protection and patient plate monitoring help support safe and reliable operation.

The unit supports both hand switch and foot switch activation and is supplied with essential surgical accessories including an autoclavable chuck handle with electrodes, bipolar forceps with cable, hand switch pencil, foot switches and patient plate with cable, making it a complete electrosurgical solution for hospitals, surgical centres and operating theatres.

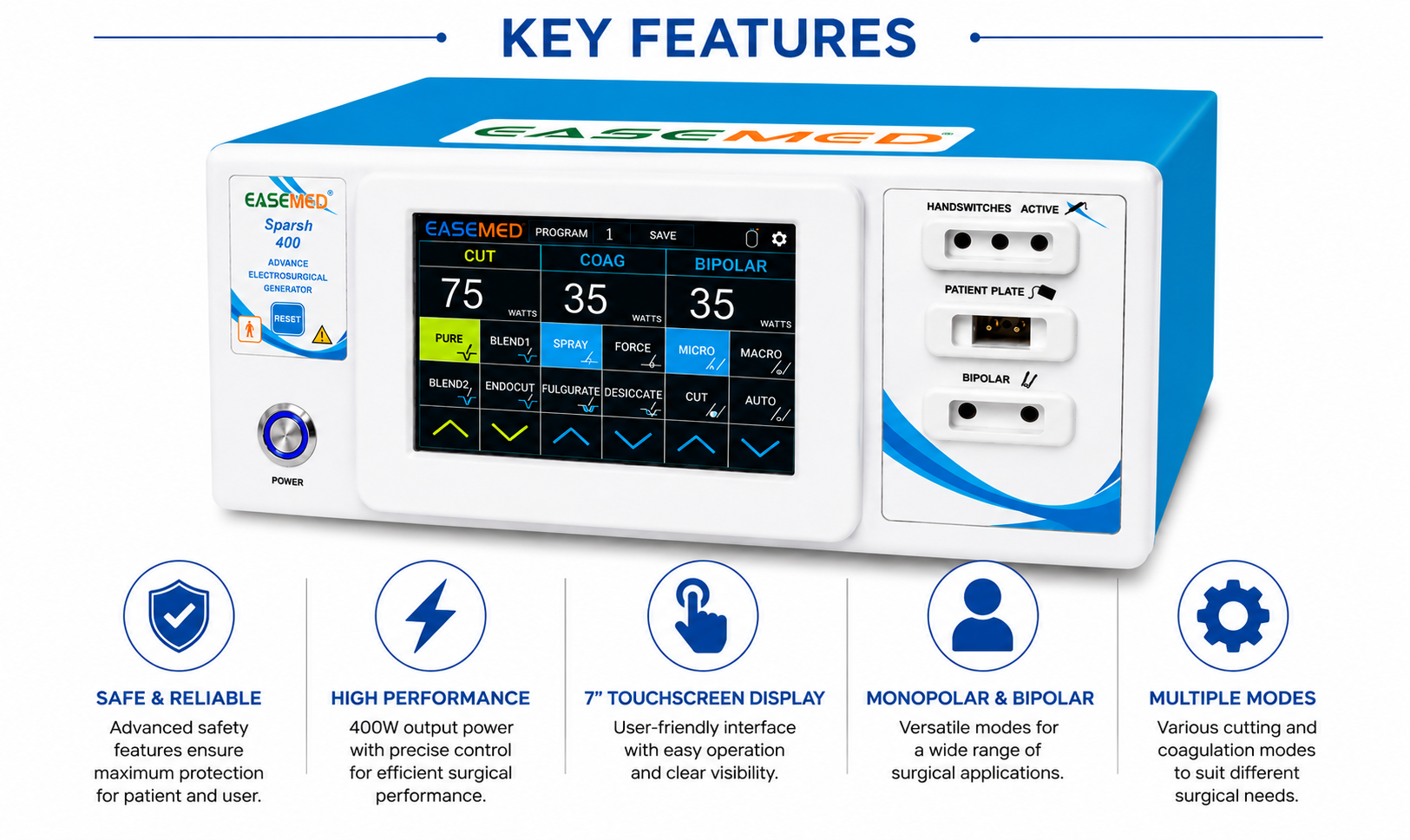

Key Features

400W High-Power Electrosurgical Generator
Advanced 7-Inch LCD Touch Screen Display
Monopolar Cutting & Coagulation
Advanced Bipolar Electrosurgery
99 User-Programmable Programs
Pure Cut, Blend 1, Blend 2 & Endocut Modes
Spray, Force, Fulgurate & Desiccate Coagulation
Micro & Macro Bipolar Modes
Bipolar Cut & Auto Bipolar Modes
Hand Switch & Foot Switch Activation
Patient Plate Monitoring System
Automatic Self-Test
Real-Time Output Monitoring
Overload Protection
480 kHz Operating Frequency
Intuitive Touch Screen Controls
Stable & Precise RF Energy Delivery
Complete Surgical Accessories Included

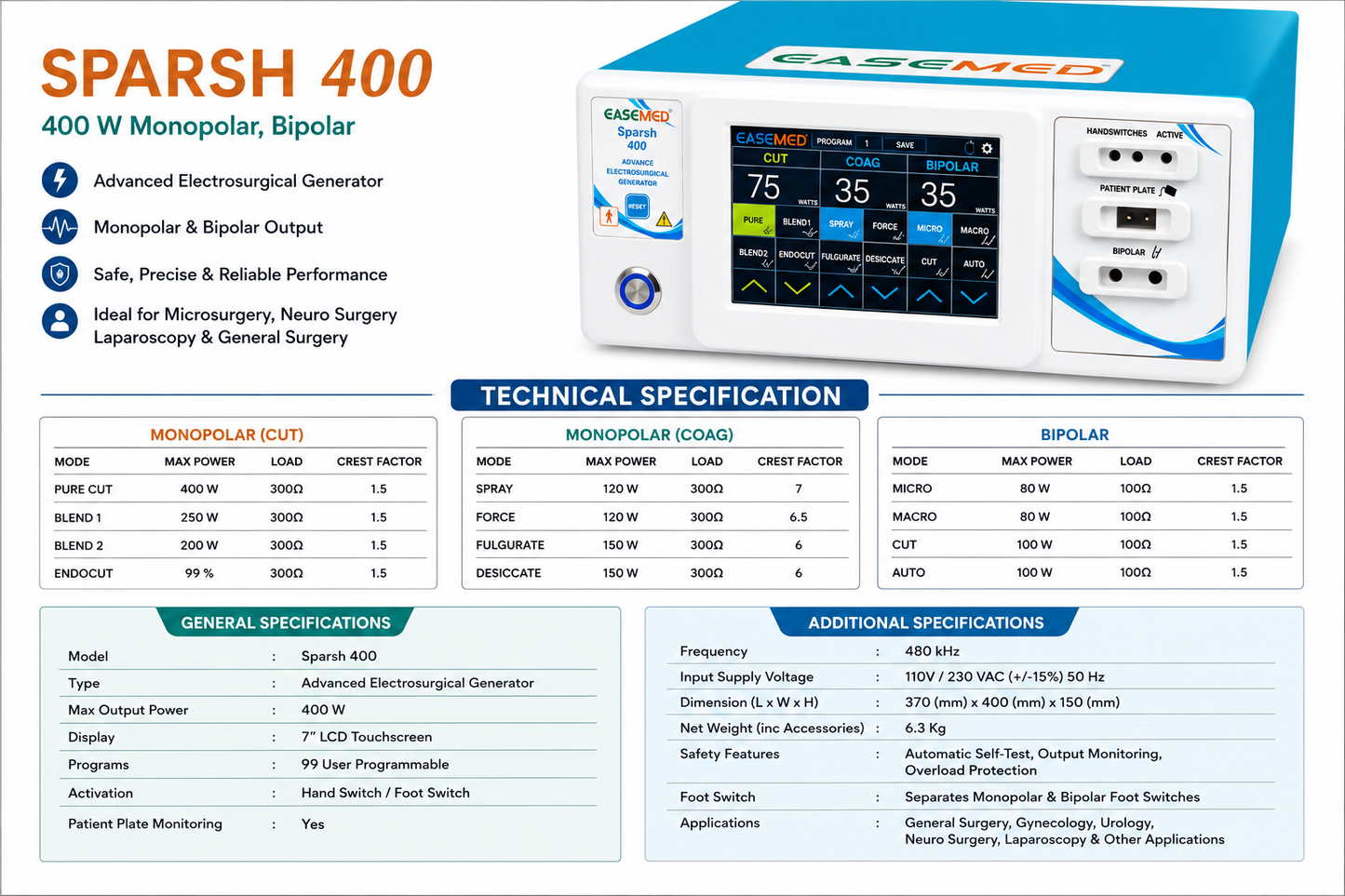

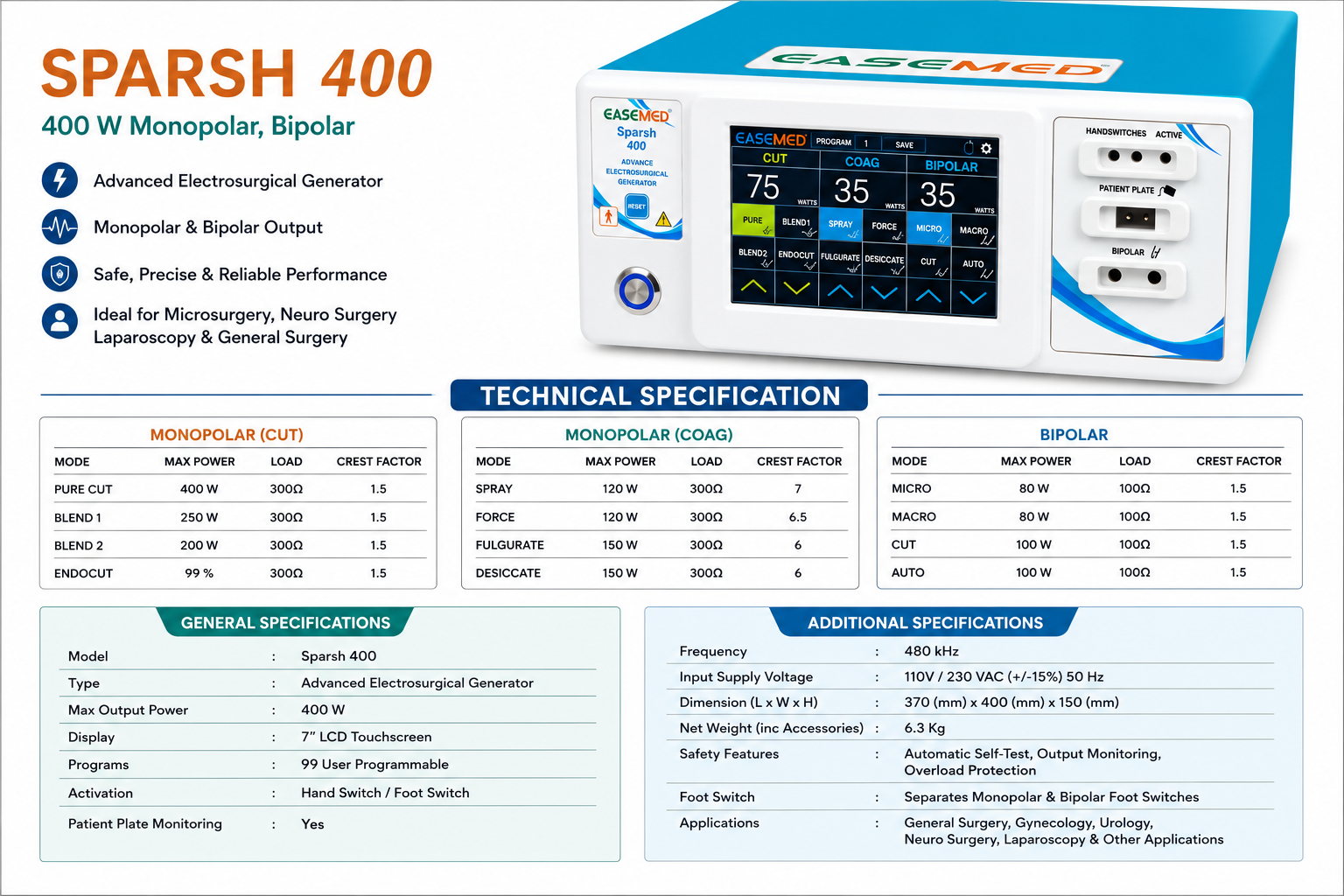

Technical Specifications

Specification	Details
Brand	EASEMED
Model	SPARSH 400
Product Type	Advanced Electrosurgical Generator
Maximum Output Power	400 W
Display	7" LCD Touch Screen
User Programs	99 User Programmable
Activation	Hand Switch / Foot Switch
Patient Plate Monitoring	Yes
Operating Frequency	480 kHz
Input Supply	110V / 230V AC ±15%, 50 Hz
Dimensions	370 × 400 × 150 mm
Net Weight incl. Accessories	Approx. 6.3 kg
Safety Features	Automatic Self-Test, Output Monitoring & Overload Protection
Foot Switch	Separate Monopolar & Bipolar Foot Switches
Warranty	1 Year Manufacturer Warranty

Monopolar Cut Modes

Mode	Max Power	Load	Crest Factor
Pure Cut	400 W	300 Ω	1.5
Blend 1	250 W	300 Ω	1.5
Blend 2	200 W	300 Ω	1.5
Endocut	Programmable	300 Ω	1.5

Monopolar Coagulation Modes

Mode	Max Power	Load	Crest Factor
Spray	120 W	300 Ω	7
Force	120 W	300 Ω	6.5
Fulgurate	150 W	300 Ω	6
Desiccate	150 W	300 Ω	6

Bipolar Modes

Mode	Max Power	Load	Crest Factor
Micro	80 W	100 Ω	1.5
Macro	80 W	100 Ω	1.5
Bipolar Cut	100 W	100 Ω	1.5
Auto Bipolar	100 W	100 Ω	1.5

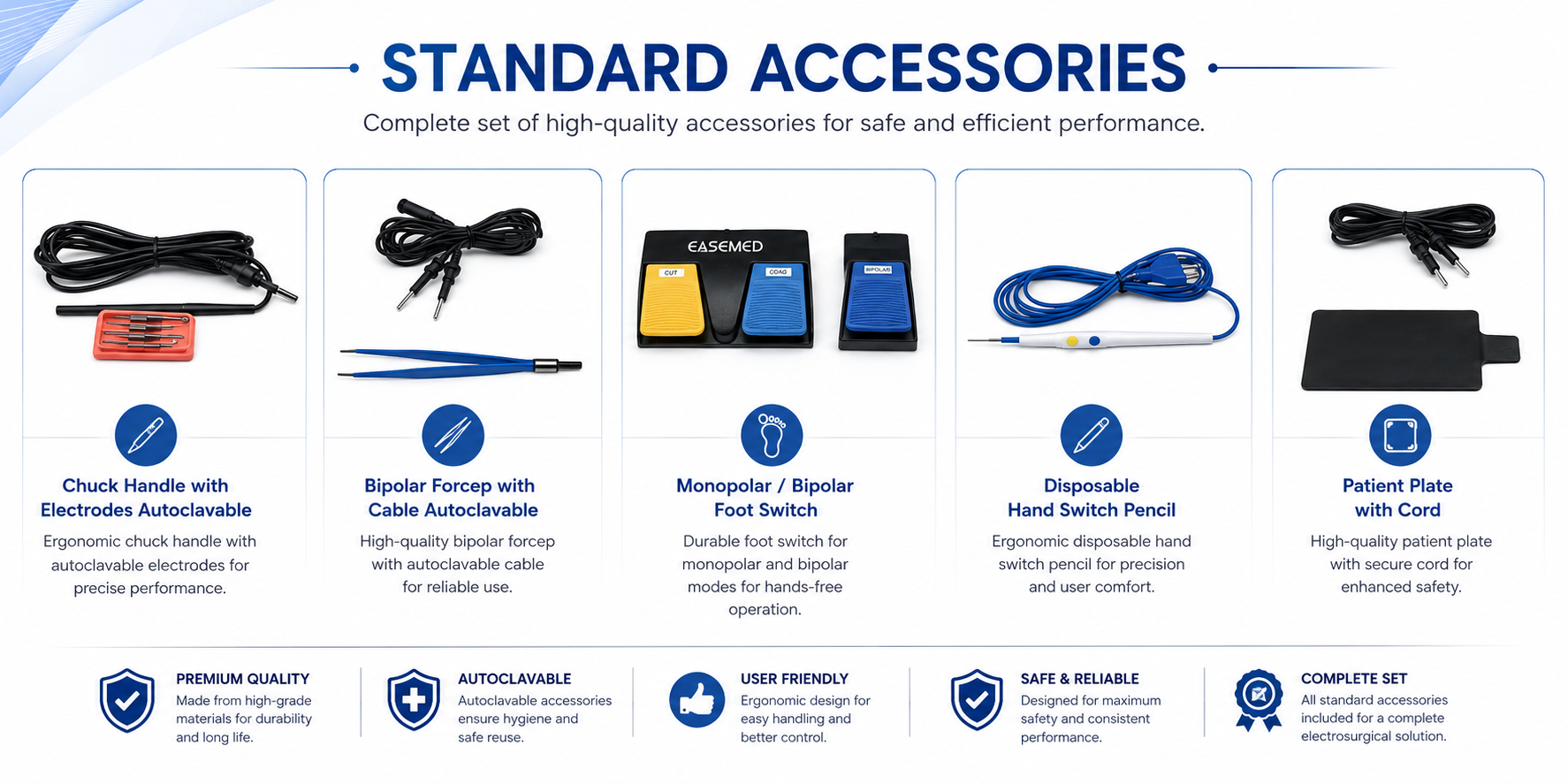

Standard Accessories Included

Autoclavable Chuck Handle with Electrodes
Autoclavable Bipolar Forceps with Cable
Monopolar Hand Switch Pencil
Monopolar Foot Switch
Bipolar Foot Switch
Patient Plate with Cable
Power Cord
User Manual

Applications

Ideal for:

General Surgery
Laparoscopic Surgery
Gynecology
Urology
Neurosurgery
Microsurgery
ENT Surgery
Plastic & Reconstructive Surgery
Gastrointestinal Surgery
Colorectal Surgery
Orthopedic Surgery
Oncology Surgery
Day Care Surgical Centres
Multi-Specialty Hospitals
Operating Theatres

Warranty

1-Year Manufacturer Warranty

The EASEMED SPARSH 400 Advance 400W Electrosurgical Generator is supplied with a 1-Year Manufacturer Warranty against manufacturing defects from the date of purchase.
