TSW CO₂ Insufflator Without Air Mode – 30L

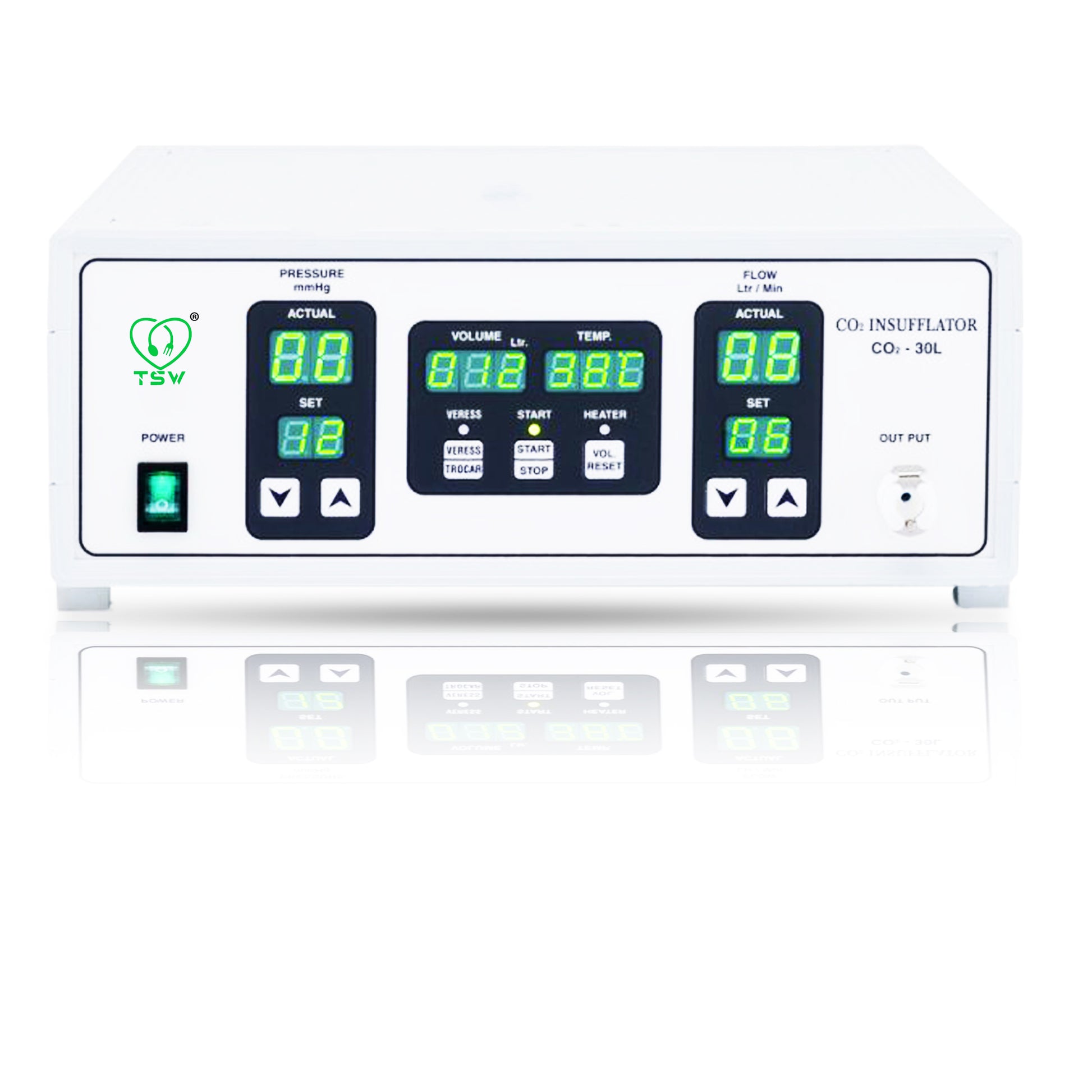

The TSW CO₂ Insufflator (30L) is a high-performance medical device designed to deliver precise, safe, and controlled CO₂ insufflation during laparoscopic surgeries. Built with advanced microcontroller technology, it ensures accurate pressure and flow control while maintaining patient safety. Its user-friendly interface, digital display, and safety mechanisms make it an essential tool for modern operating rooms.

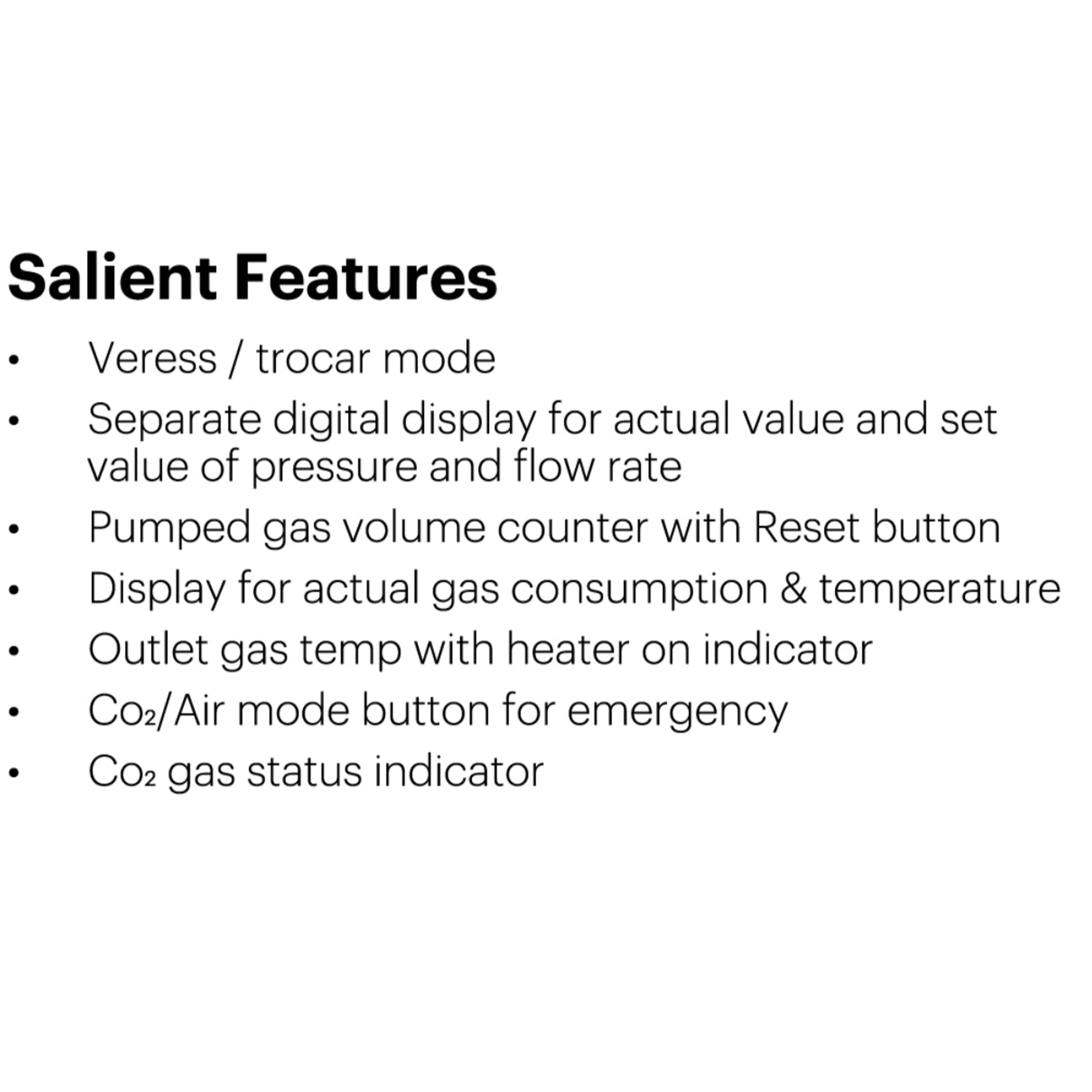

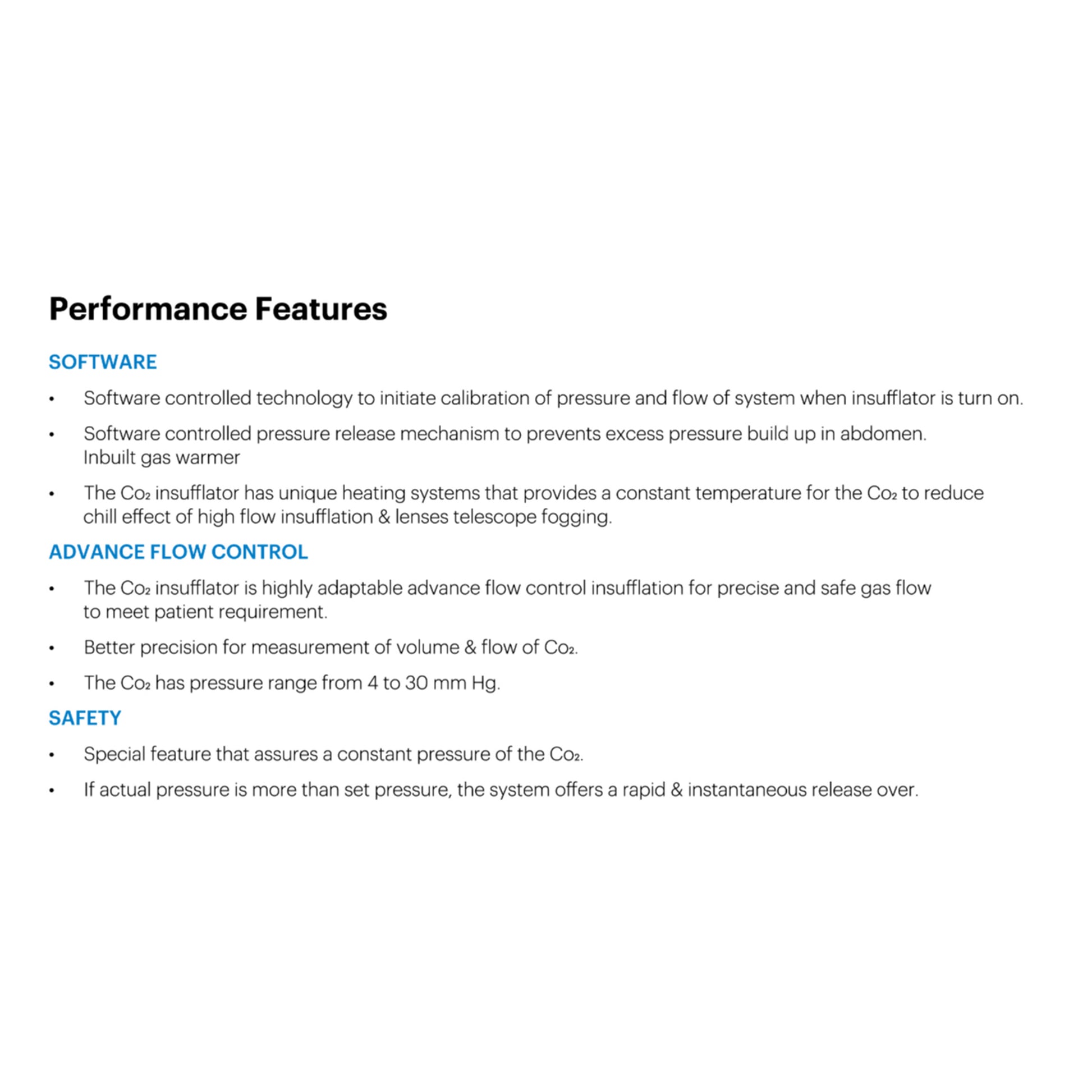

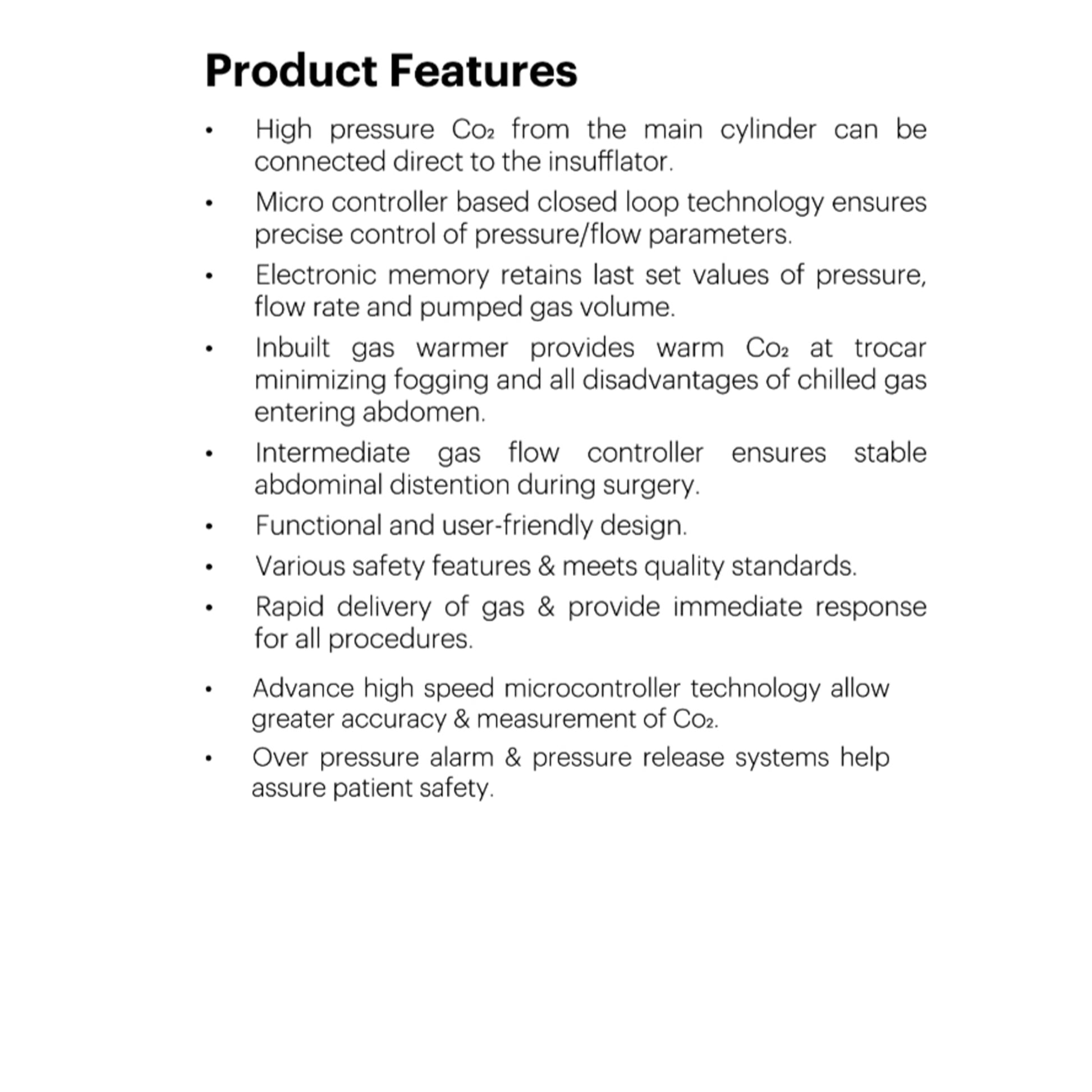

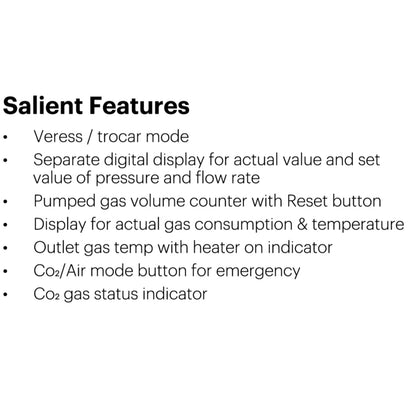

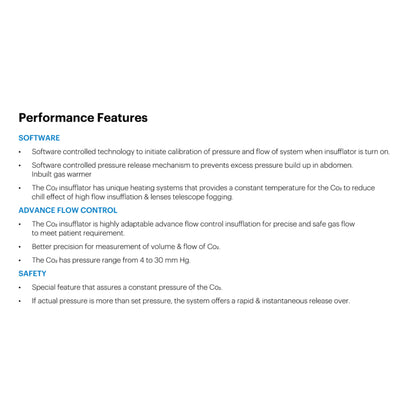

Key Features
- High Capacity (30L/min) – Provides stable and continuous CO₂ flow for all laparoscopic procedures.
- Microcontroller-Based Technology – Ensures precise pressure and flow regulation.
- Digital Display – Shows real-time pressure, flow rate, temperature, and gas consumption.
- Built-in Gas Warmer – Supplies warm CO₂ to minimize fogging and discomfort caused by chilled gas.
- Safety Alarms – Overpressure alarm and automatic pressure release for patient safety.
- Memory Function – Retains last set values for convenience in repeated procedures.
- Compact & Durable – Lightweight metal body with ergonomic design for easy handling.

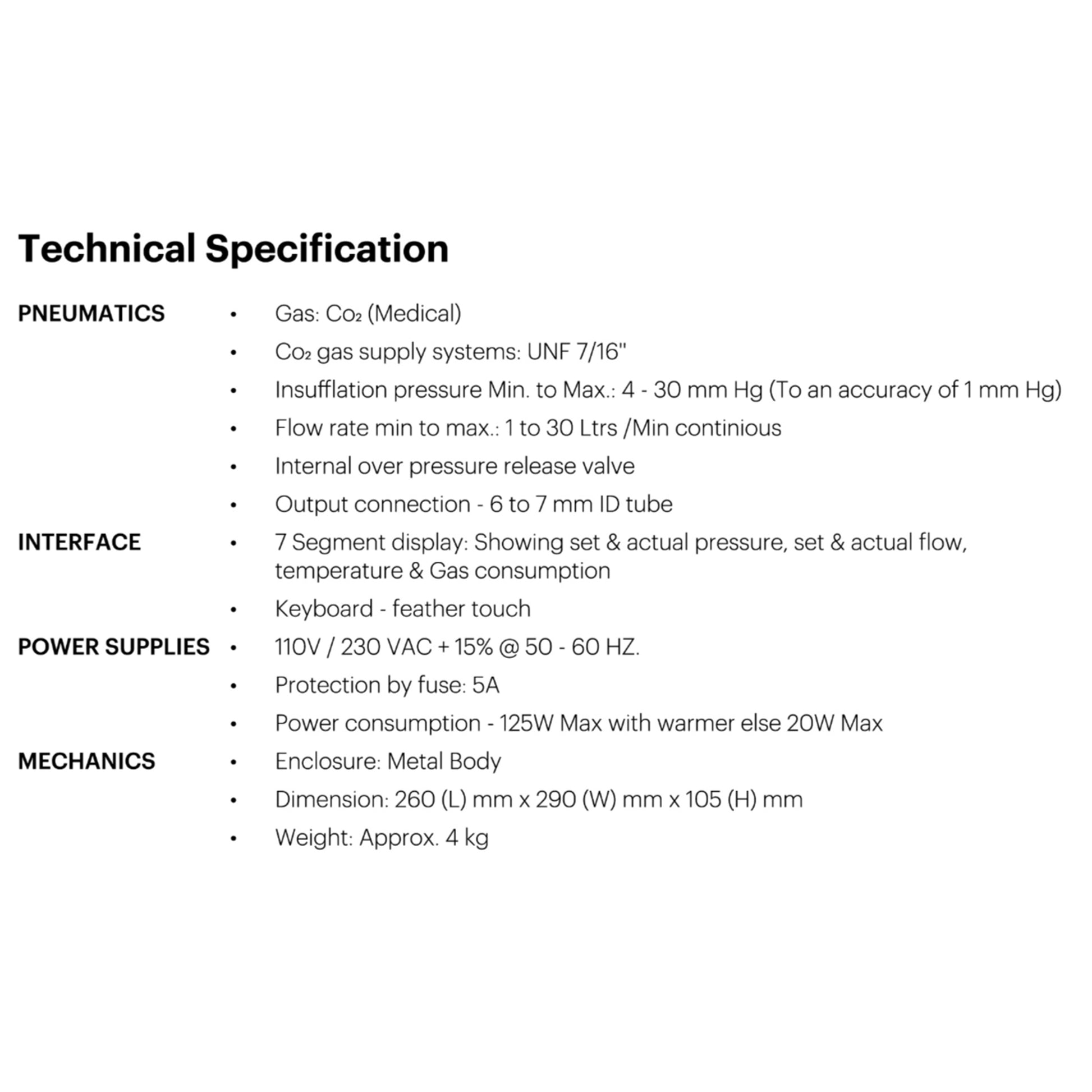

Technical Specifications
| Category | Specification |
|---|---|
| Gas Type | CO₂ (Medical Grade) |
| Flow Rate | 1 – 30 L/min continuous |
| Pressure Range | 4 – 30 mmHg (±1 mmHg accuracy) |
| Display | Digital 7-segment (pressure, flow, temperature, gas volume) |
| Interface | Feather-touch keyboard |
| Safety | Internal overpressure release, overpressure alarm |
| Power Supply | 110V/230V ±15% AC, 50–60Hz |
| Consumption | Max 125W with warmer, else 20W |
| Enclosure | Metal body |
| Dimensions | 260 (L) × 290 (W) × 105 (H) mm |
| Weight | Approx. 4 kg |
