EASEMED Advance Endoflator CO₂ Insufflator with Inbuilt Gas Warmer | Microcontroller Controlled Endoscopic Vessel Harvesting System | 3 Flow Modes | Medical CO₂ Endoflation Unit
EASEMED Advance Endoflator CO₂ Insufflator with Inbuilt Gas Warmer | Microcontroller Controlled Endoscopic Vessel Harvesting System | 3 Flow Modes | Medical CO₂ Endoflation Unit
Estimated Dispatch: 2–4 Business Days
Couldn't load pickup availability
ISO & CE Certified
- Express Delivery
- Secure Payment

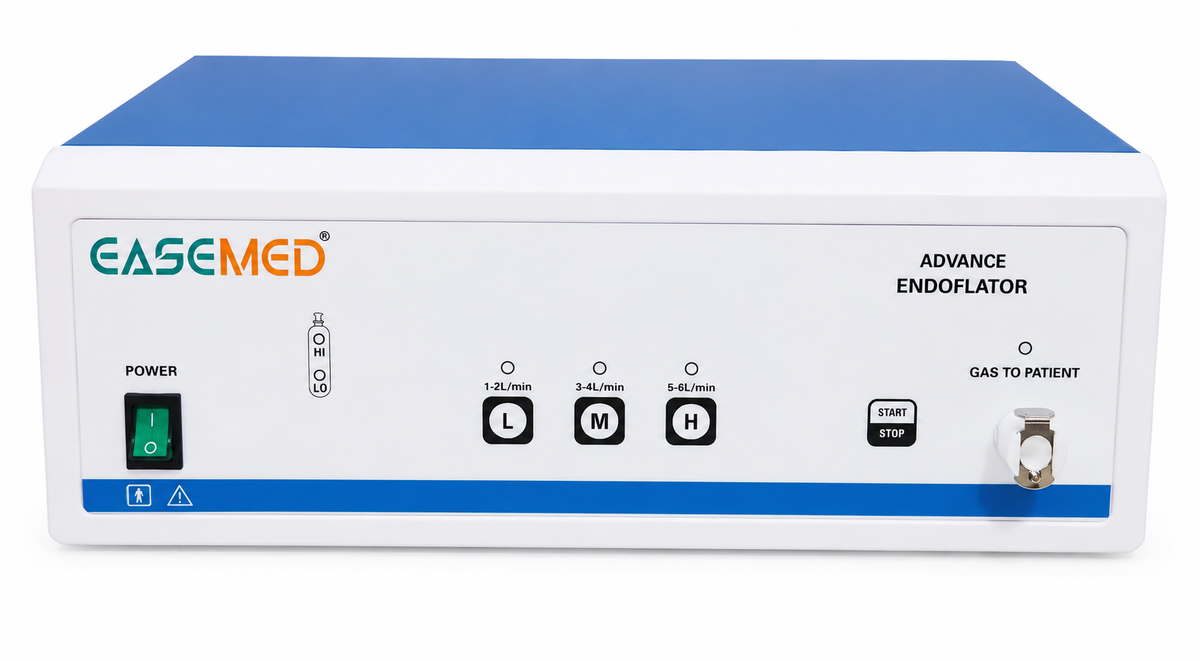

The EASEMED Advance Endoflator CO₂ Insufflator is a precision-engineered electronic insufflation system designed for endoscopic vessel harvesting and minimally invasive surgical procedures. Equipped with an inbuilt gas warmer and microcontroller-controlled technology, it delivers stable CO₂ flow while maintaining optimal gas temperature for improved patient comfort and surgical efficiency. The unit features three selectable flow modes (Low, Medium, and High), allowing surgeons to adjust insufflation according to procedural requirements. Built-in safety functions including over-pressure protection, automatic pressure release, and audio-visual alarms ensure safe and reliable operation. Its compact design, universal connector compatibility, and intuitive controls make it an ideal choice for hospitals, surgical centers, and operating rooms.

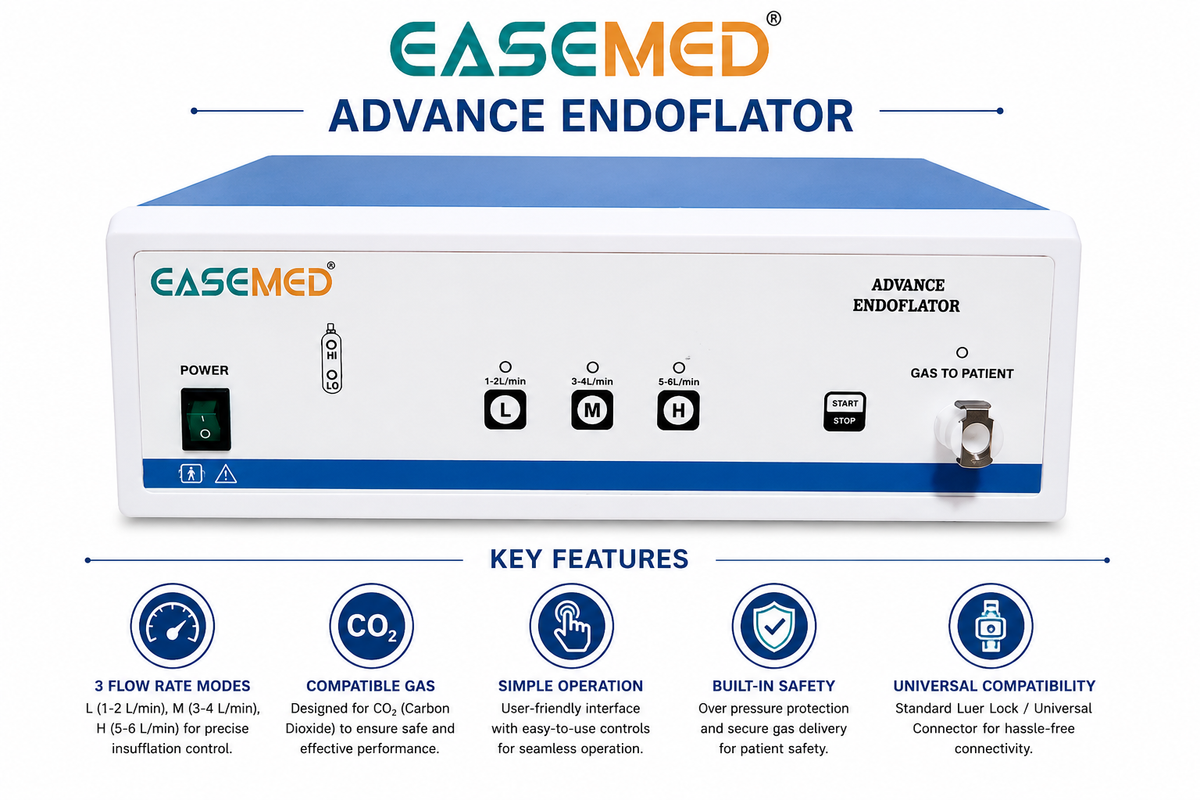

Key Features
- Microcontroller Controlled Technology for accurate CO₂ flow management.
- Inbuilt Gas Warmer helps deliver warmed CO₂ for improved surgical performance.
- Three Selectable Flow Modes (1–2 L/min, 3–4 L/min, 5–6 L/min).
- Electronic CO₂ Insufflation System for endoscopic vessel harvesting procedures.
- Maximum Insufflation Pressure up to 25 mmHg.
- Digital Control System for simple and reliable operation.
- Universal Luer Lock Gas Outlet for broad compatibility.
- Over Pressure Protection with automatic pressure release.
- Audio-Visual Alarm System for enhanced patient safety.
- Compact, Durable Medical Grade Construction suitable for continuous clinical use.

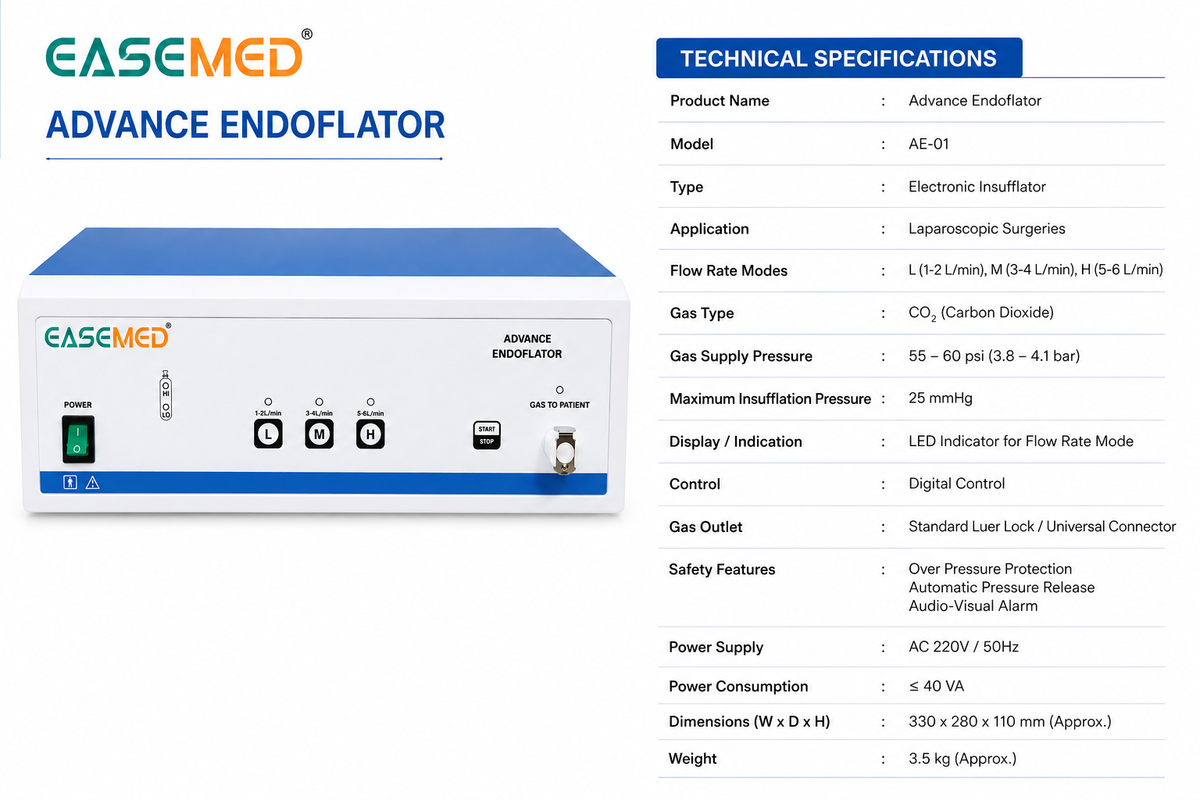

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | EASEMED Advance Endoflator |
| Model | AE-01 |
| Type | Electronic CO₂ Insufflator |
| Application | Endoscopic Vessel Harvesting & Laparoscopic Procedures |
| Gas Type | Carbon Dioxide (CO₂) |
| Flow Modes | Low (1–2 L/min), Medium (3–4 L/min), High (5–6 L/min) |
| Maximum Pressure | 25 mmHg |
| Gas Supply Pressure | 55–60 psi (3.8–4.1 bar) |
| Display | LED Flow Mode Indicators |
| Control System | Microcontroller Controlled |
| Gas Outlet | Standard Luer Lock / Universal Connector |
| Safety Features | Over Pressure Protection, Automatic Pressure Release, Audio-Visual Alarm |
| Power Supply | AC 220V, 50Hz |
| Power Consumption | ≤40 VA |
| Dimensions | 330 × 280 × 110 mm |
| Weight | Approx. 3.5 kg |
Applications
The EASEMED Advance Endoflator is suitable for:
- Endoscopic Vessel Harvesting (EVH)
- Cardiovascular Surgery
- Thoracic Surgery
- Minimally Invasive Procedures
- Endoscopic Surgical Procedures
- Laparoscopic Surgery
- General Surgery
- Hospital Operating Rooms
- Specialty Surgical Centers

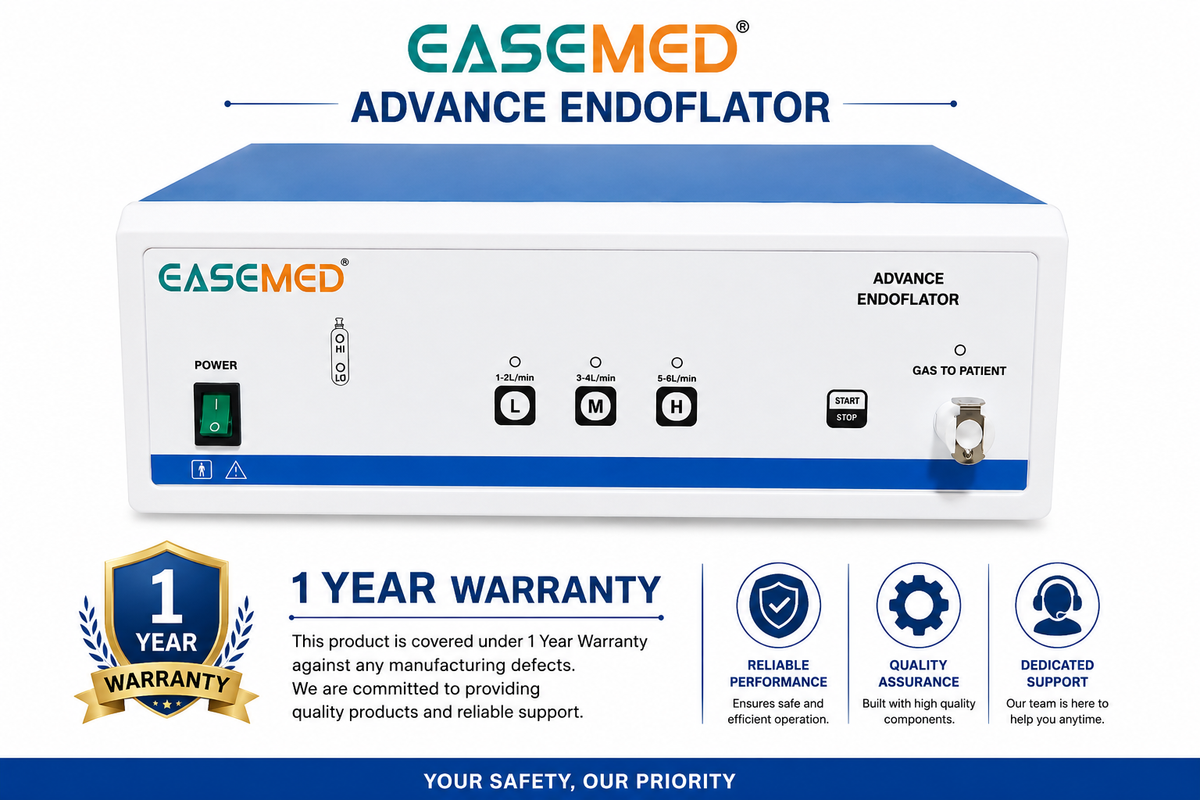

Warranty
1 Year Manufacturer Warranty
The EASEMED Advance Endoflator includes a 1-year manufacturer warranty against manufacturing defects in materials and workmanship from the date of purchase. The warranty excludes damage resulting from misuse, accidental damage, unauthorized servicing, improper installation, or normal wear and tear.
FDA Approved
strict quality control
