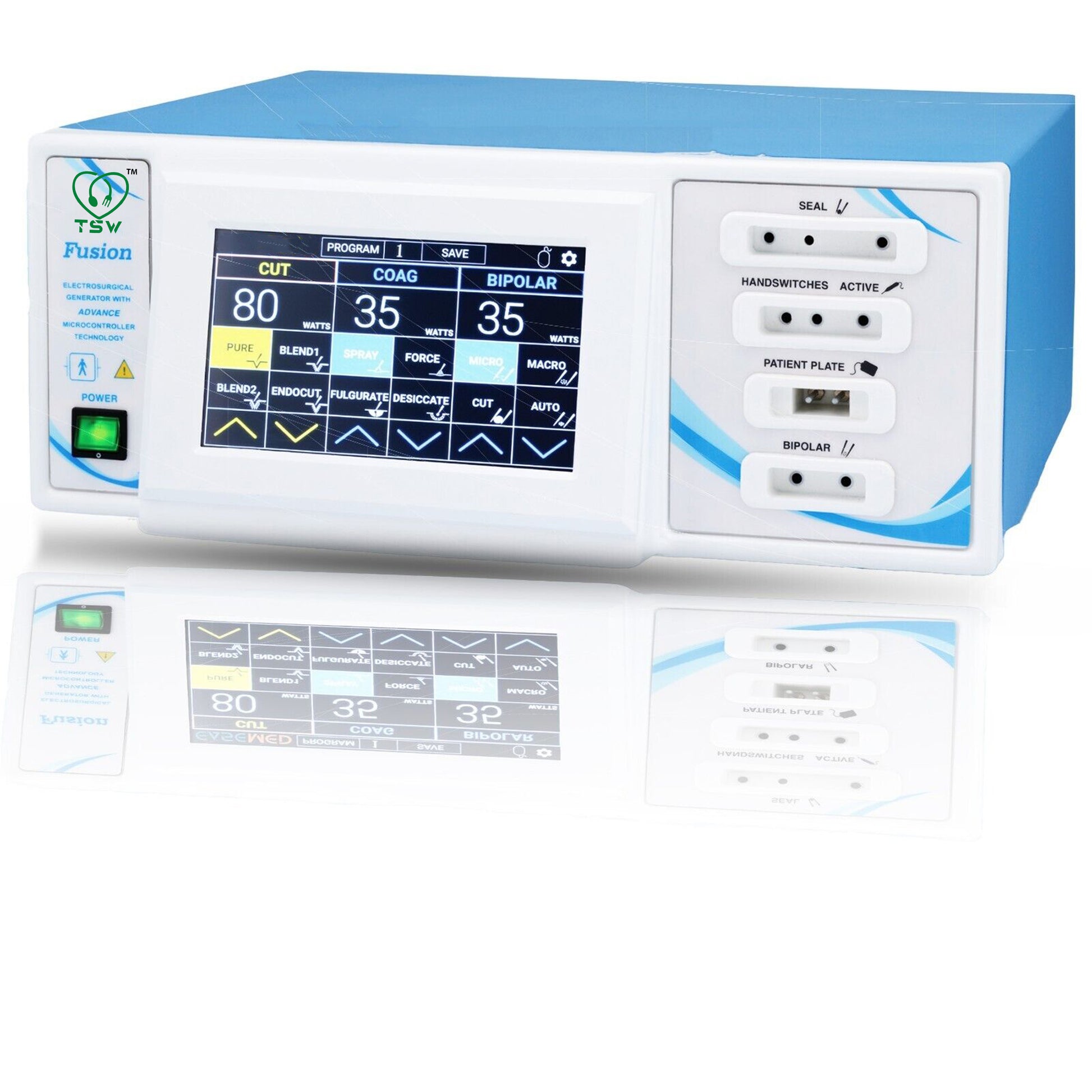

Fusion 400W Digital Touchscreen Cautery Machine with Vessel Sealing System & Normal Saline Bipolar TURP
The TSW Fusion 400W Electrosurgical Generator is an advanced digital cautery machine designed for precision, safety, and versatility in modern surgical procedures. Equipped with a 7-inch LCD touchscreen interface, it offers intuitive control of cutting, coagulation, bipolar sealing, and saline TURP modes. This unit integrates the latest technology for monopolar, bipolar, and vessel sealing functions, ensuring maximum performance and patient safety across a wide range of applications.
Engineered for laparoscopic, general, and urological surgeries, the Fusion 400W combines high-frequency energy with intelligent control modes, enabling surgeons to achieve smooth cuts, reliable coagulation, and effective vessel sealing with minimal thermal spread. The Normal Saline Bipolar TURP function provides a safe solution for prostate surgery, virtually eliminating TURP syndrome risk while offering superior clinical outcomes.

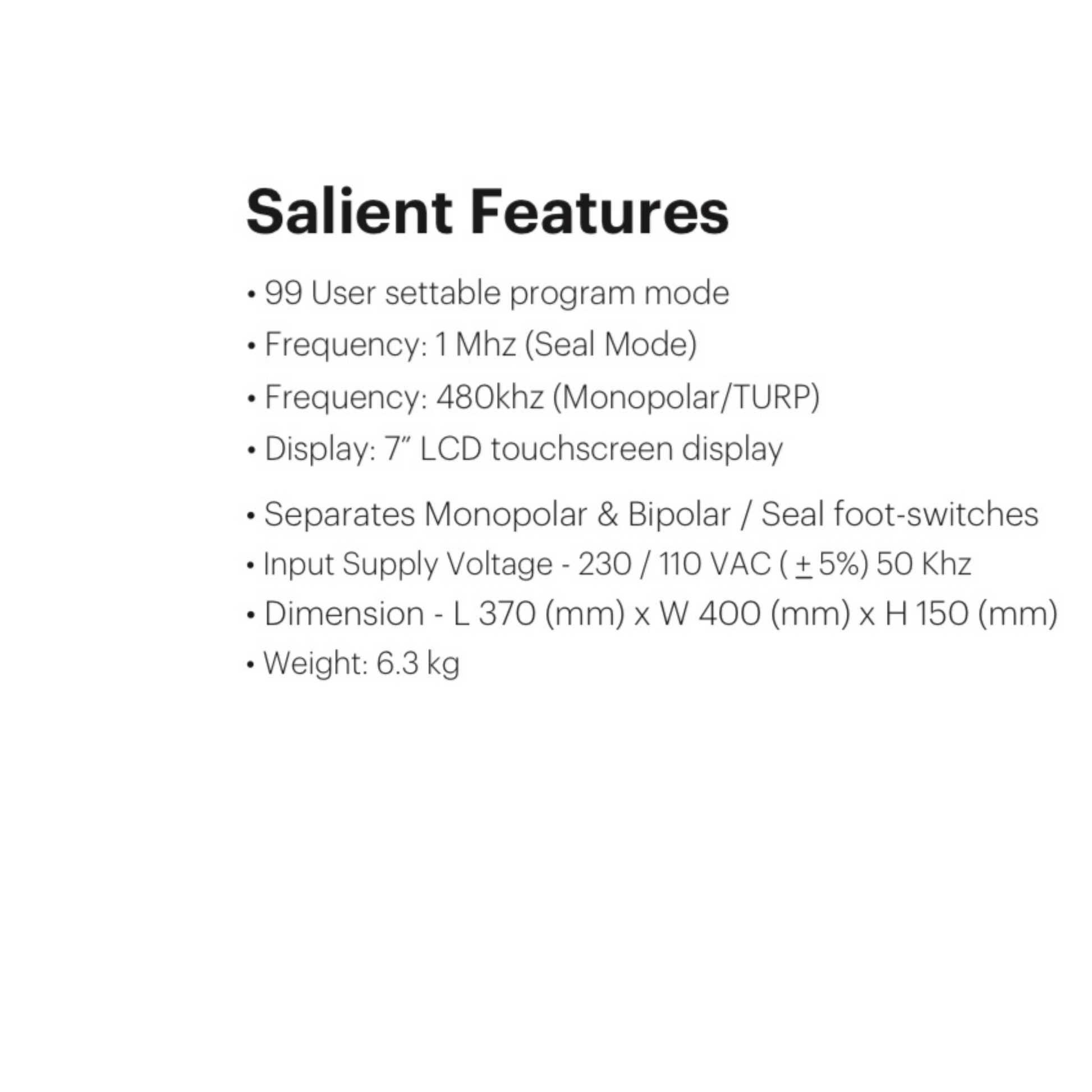

Key Features
- 400W High-Power Output for precise cutting & coagulation.
- 99 User-Settable Program Modes for customizable surgical needs.
- 7” LCD Touchscreen Display with intuitive interface.
- Vessel Sealing Technology – safe, strong, and efficient sealing without foreign material.
- Normal Saline Bipolar TURP Mode – minimizes complications & enhances safety.
- Separate Monopolar & Bipolar Foot Switches for ease of use.

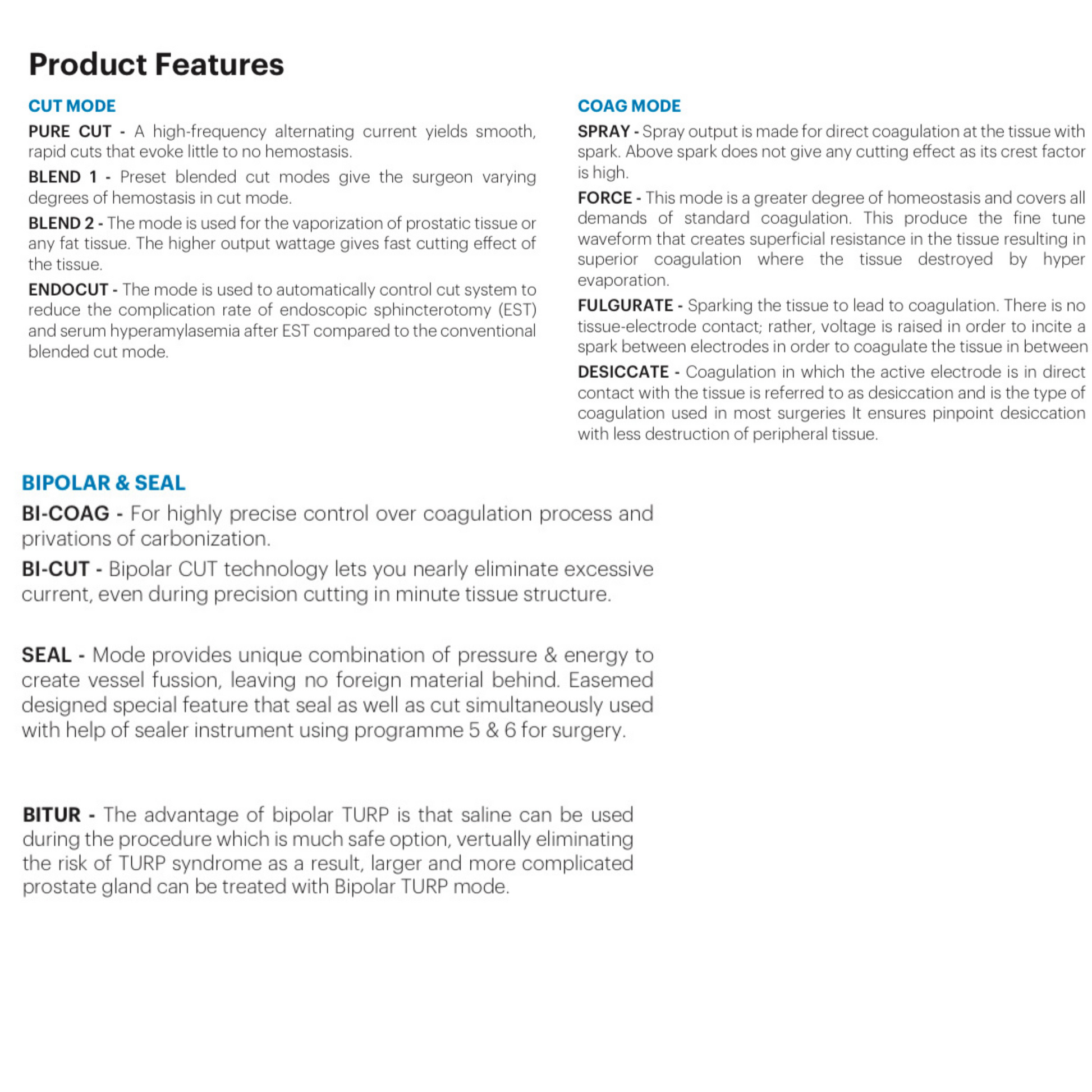

- Multi-Mode Functions: Pure Cut, Blend, Endocut, Spray, Force, Fulgurate, Desiccate, Bi-Coag, Bi-Cut, Seal & Saline Coag.
- Compact & Lightweight Design – 6.3 kg with ergonomic build.

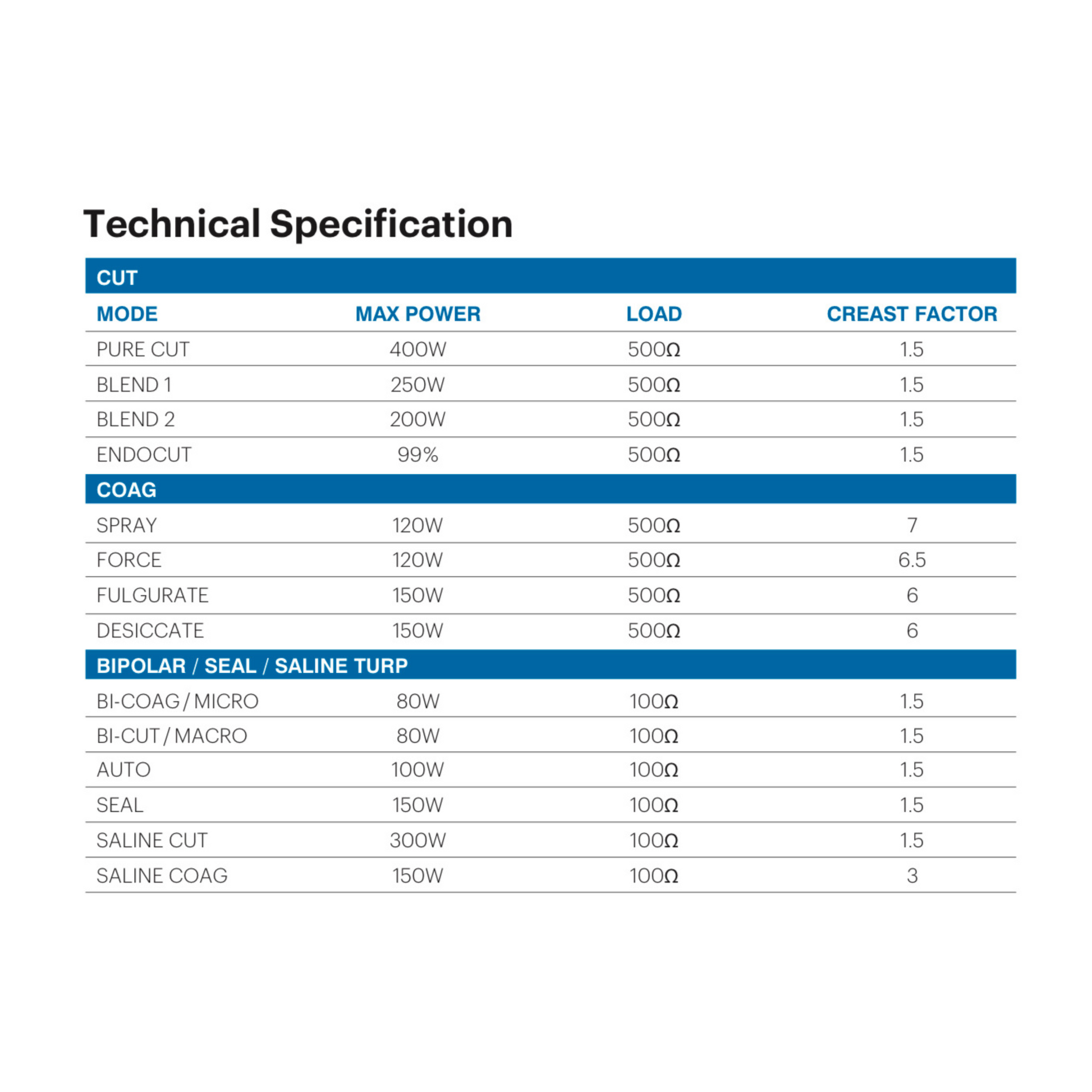

Technical Specifications
| Category | Details |
|---|---|
| Max Power Output | 400W |
| Cut Modes | Pure Cut (400W), Blend 1 (250W), Blend 2 (200W), Endocut (99%) |
| Coagulation Modes | Spray (120W), Force (120W), Fulgurate (150W), Desiccate (150W) |
| Bipolar/Seal/TURP Modes | Bi-Coag (80W), Bi-Cut (80W), Seal (150W), Saline Cut (300W), Saline Coag (150W) |
| Frequencies | 1 MHz (Seal), 480 kHz (Monopolar/TURP) |
| Input Supply Voltage | 230V / 110V AC ± 5%, 50 kHz |
| Display | 7” LCD Touchscreen |
| Dimensions | 370 × 400 × 150 mm |
| Weight | 6.3 kg |
- Ideal for laparoscopic, gynecological, urological, and general surgeries.
- Trusted by surgeons for precision, reliability, and safety.
- Designed with TSW’s advanced technology for superior surgical outcomes.
