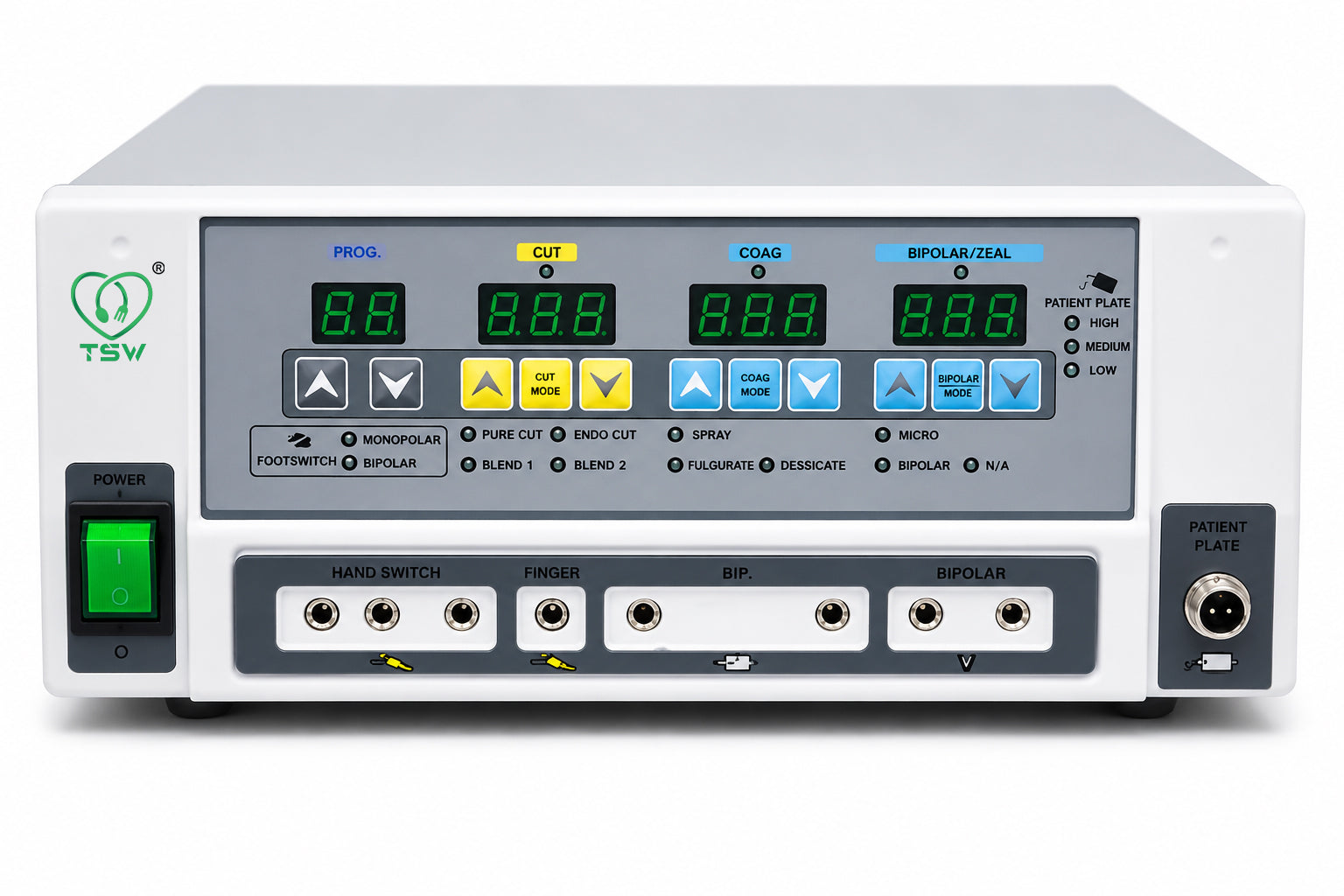

The G 400 Programming 400W Digital Electrosurgical Generator is an advanced microprocessor-controlled cautery machine designed for precise monopolar cutting, monopolar coagulation, and bipolar electrosurgery. With a maximum output of 400 Watts, the system provides controlled high-frequency energy delivery for a wide range of surgical applications.

Its programmable digital control system offers easy adjustment and repeatable operating settings. The generator incorporates separate digital displays for program, cut, coagulation, and bipolar output, providing clear visibility of selected operating parameters during procedures.

The G 400 supports multiple monopolar cutting modes including Pure Cut, Endo Cut, Blend 1, and Blend 2, together with coagulation modes such as Spray, Fulgurate, Dessicate, Micro, and Macro. Dedicated Bipolar Cut/Coagulation functionality provides controlled bipolar energy for procedures requiring localized energy delivery.

For enhanced operational safety, the system incorporates patient plate monitoring with multi-level indication, error alarms, overload and short-circuit protection, isolated output, and built-in cooling. Hand-switch and foot-switch activation provide flexible operation according to surgical requirements.

Supplied with essential electrosurgical accessories including a dual foot switch, bipolar forceps with cable, chuck handle, cautery pencil, patient plate with cable, electrode set, and power cord, the G 400 Programming Cautery Machine provides a complete electrosurgical solution for hospitals, surgical centres, clinics, and operating theatres.

Key Features

• 400W Maximum Digital Electrosurgical Output
• Programmable Digital Control System
• Microprocessor-Controlled Operation
• Monopolar Cutting & Coagulation
• Bipolar Cut & Coagulation
• Separate Digital Output Displays
• Program Selection Function
• Pure Cut Mode
• Endo Cut Mode
• Blend 1 & Blend 2 Modes
• Spray Coagulation
• Fulgurate Coagulation
• Dessicate Coagulation
• Micro & Macro Coagulation Modes
• Patient Plate Monitoring System
• Visual & Audible Safety Indication
• Hand Switch & Foot Switch Compatible
• Overload & Short-Circuit Protection
• Isolated Output for Patient Safety
• Built-In Cooling System
• Compact & Durable Construction
• Complete Surgical Accessories Included

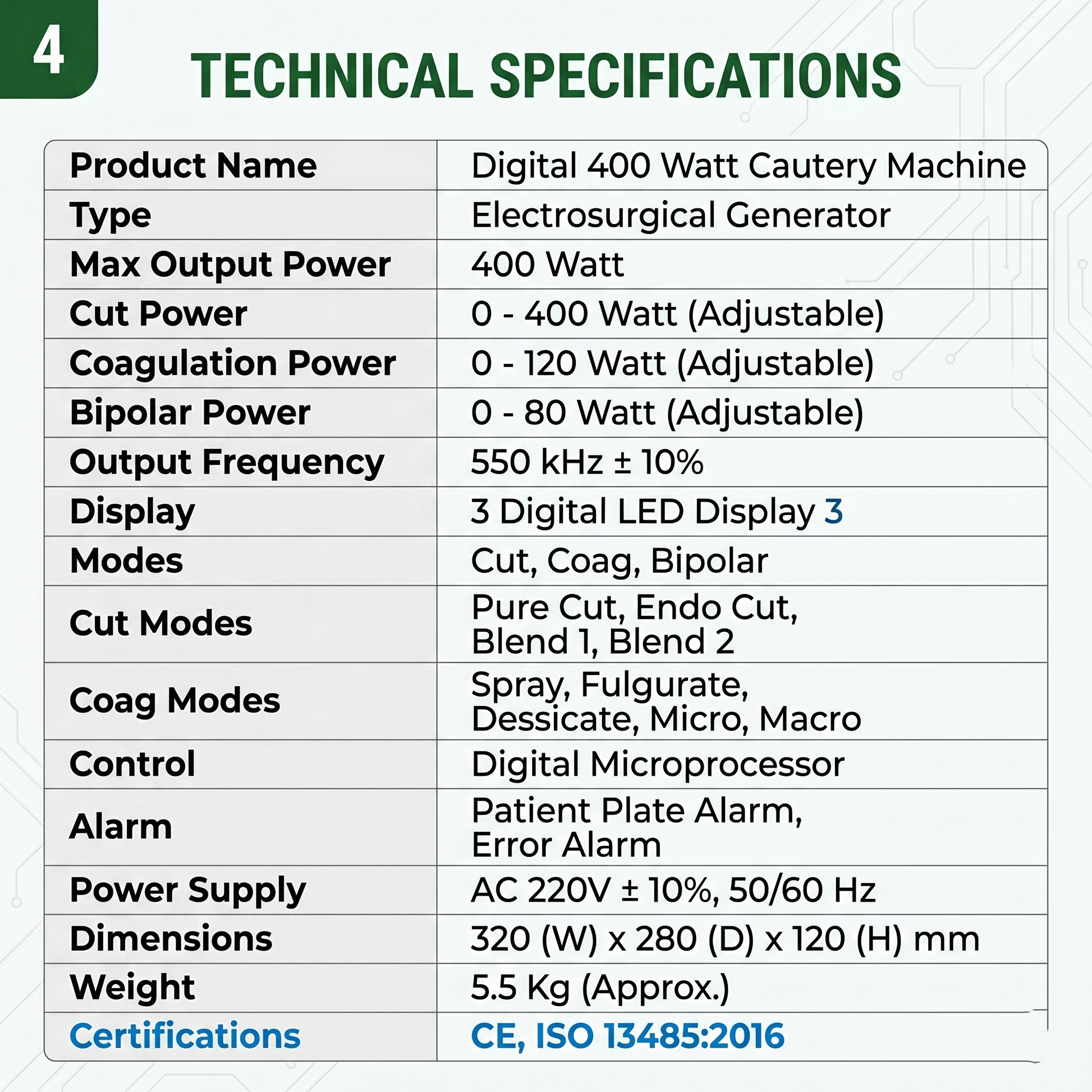

Technical Specifications

Modes & Functions

Monopolar Cut Modes

Pure Cut – Provides controlled cutting output for clean surgical incisions.

Endo Cut – Designed for controlled cutting during compatible endoscopic procedures.

Blend 1 – Combines cutting and coagulation characteristics for general surgical applications.

Blend 2 – Provides increased hemostatic effect during cutting.

Monopolar Coagulation Modes

Spray – Suitable for broader-area coagulation.

Fulgurate – Provides surface coagulation using controlled high-frequency energy.

Dessicate – Designed for controlled tissue desiccation.

Micro – Low-level controlled coagulation for procedures requiring finer energy delivery.

Macro – Higher coagulation output for broader surgical requirements.

Bipolar Mode

Bipolar Cut/Coagulation – Provides localized bipolar energy for precise bipolar electrosurgical procedures.

Standard Accessories Included

• Dual Foot Switch – Cut & Coag
• Bipolar Forceps with Cable
• Monopolar Chuck Handle with Cable
• Cautery Hand Switch Pencil
• Patient Plate with Cable
• Reusable Electrode / Needle Set
• Electrode Tip Cleaner
• Power Cord

Applications

Suitable for:

• General Surgery
• Gynecological Surgery
• Urological Surgery
• Laparoscopic Surgery
• Endoscopic Procedures
• ENT Procedures
• Orthopedic Surgery
• Plastic & Reconstructive Surgery
• Gastrointestinal Surgery
• Colorectal Surgery
• Multi-Specialty Hospitals
• Surgical & Day-Care Centres

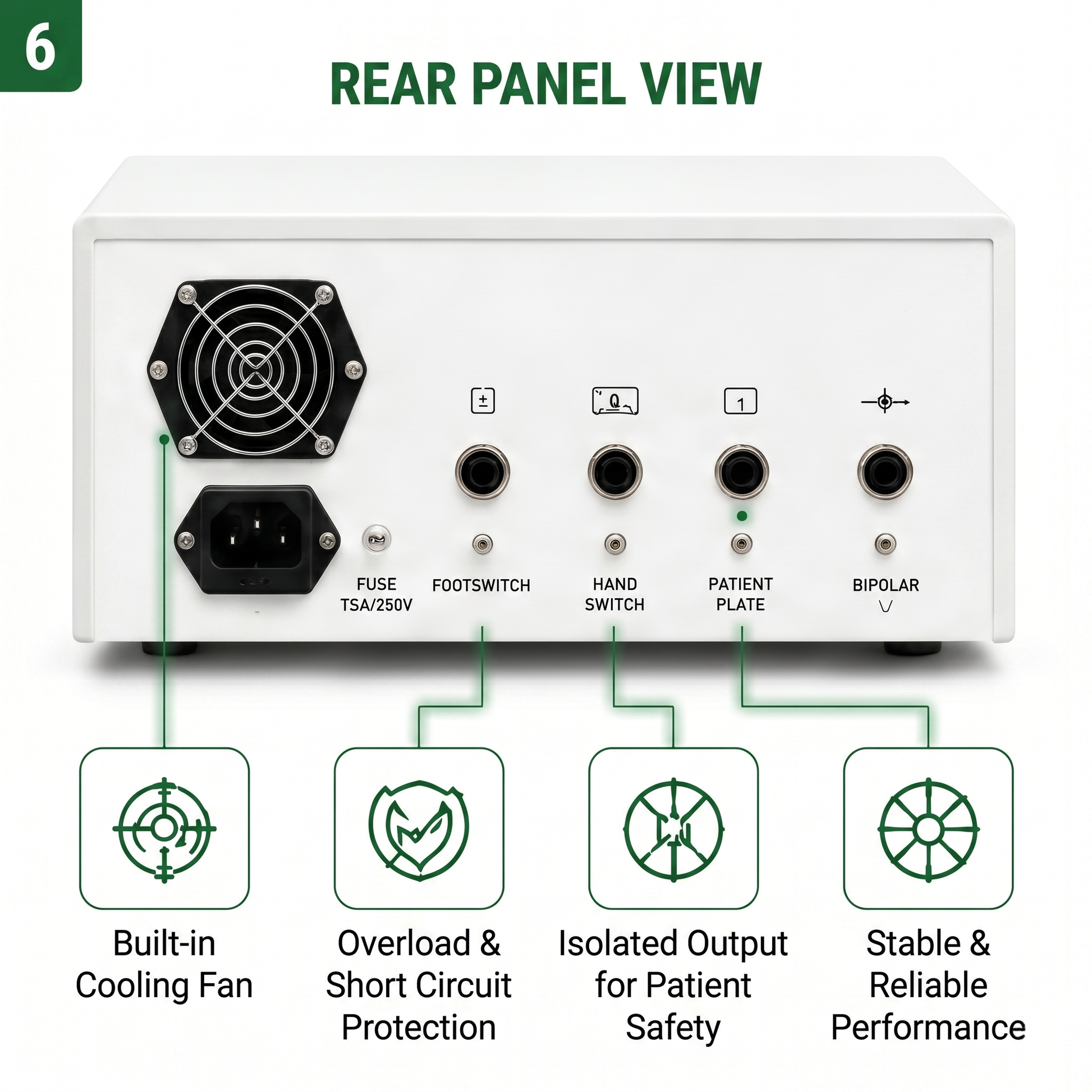

Safety Features

• Patient Plate Monitoring
• Error Detection & Alarm
• Overload Protection
• Short-Circuit Protection
• Isolated Electrosurgical Output
• Built-In Cooling Fan
• Clearly Indicated Operating Modes
• Controlled Digital Power Adjustment
