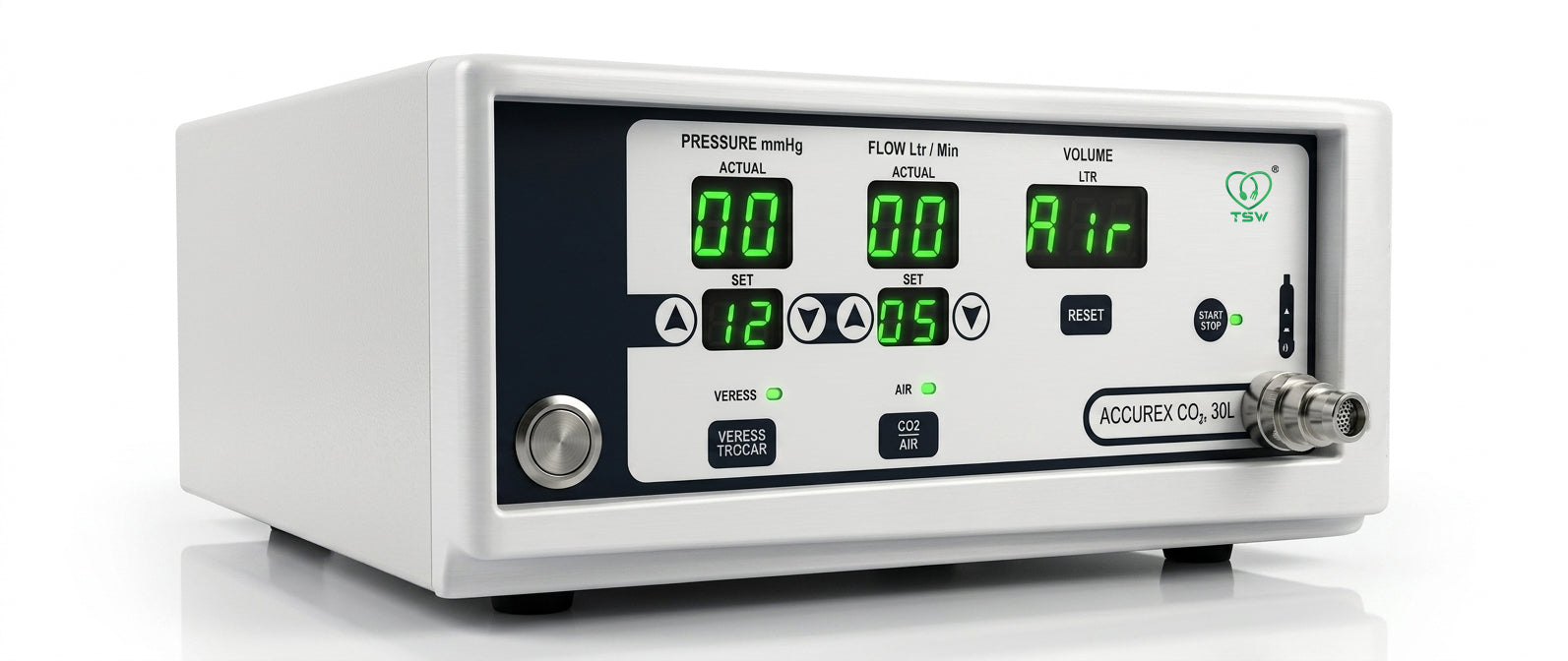

• TSW Advance CO₂ insufflator available in 30L and 40L high-flow variants
  • TSW CO₂ insufflator front panel with digital pressure flow temperature and volume displays
  • 30L laparoscopic CO₂ insufflator with built-in pressure regulator gas warmer and Air Mode
  • TSW high-flow CO₂ insufflator controls with Veress Trocar and CO₂ Air modes
  • Laparoscopic CO₂ insufflator technical features with 4–30 mmHg pressure range
  • TSW 40L high-flow CO₂ insufflation unit for laparoscopic and endoscopic surgery
1 6

TSW CO₂ Insufflator 30L/40L with Built-in Regulator, Warmer & Air Mode

TSW CO₂ Insufflator 30L/40L with Built-in Regulator, Warmer & Air Mode

Rs. 37,999.00
Rs. 37,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Flow Capacity

Estimated Dispatch: 2–4 Business Days
  • ISO & CE Certified
  • Express Delivery
  • Secure Payment

The TSW Advance CO₂ Insufflator is a high-flow laparoscopic insufflation system available in 30 L/min and 40 L/min variants. It combines controlled CO₂ delivery, an adjustable 4–30 mmHg pressure range, built-in pressure regulation, gas warming and Air Mode for compatible laparoscopic and endoscopic procedures.

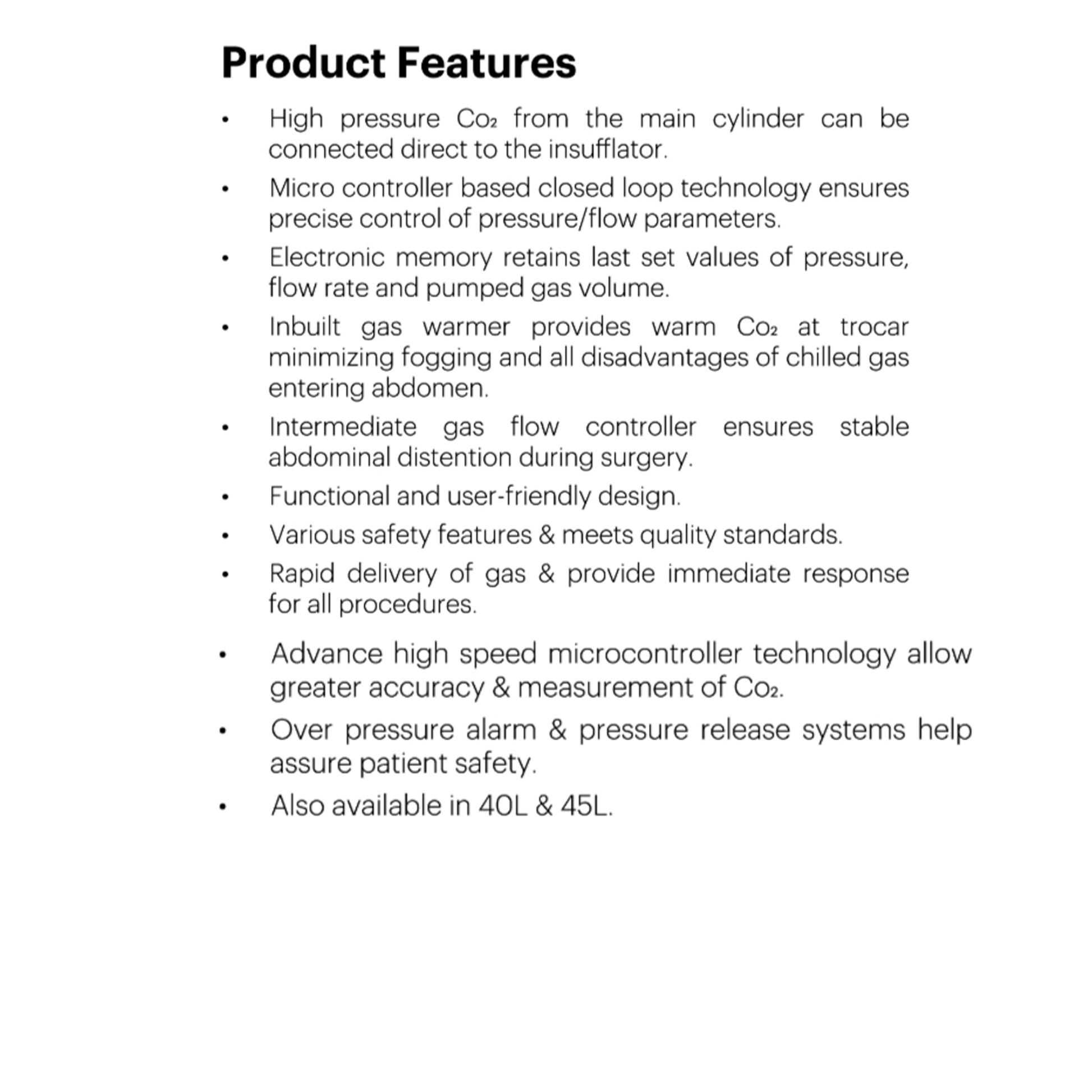

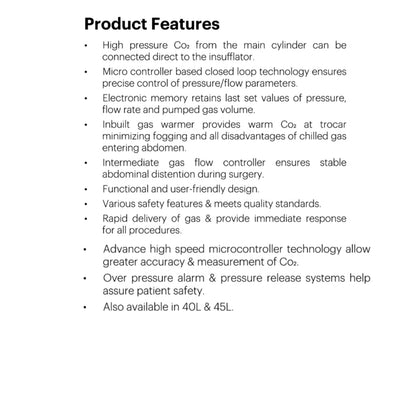

Microcontroller-based closed-loop control manages pressure and gas flow, while separate digital displays show set and actual pressure, set and actual flow, delivered gas volume, gas consumption and temperature. Veress/Trocar mode selection, feather-touch controls and an internal pressure-release mechanism support straightforward operating-room use.

Choose Your Flow Variant

Variant Maximum Flow Pressure Range Best Suited For
30 L/min 1–30 L/min continuous 4–30 mmHg Standard and high-flow laparoscopic procedures
40 L/min Up to 40 L/min 4–30 mmHg Procedures requiring a higher maximum gas-flow capacity

Key Features

  • Two flow options: 30 L/min and 40 L/min variants
  • Built-in pressure regulator for integrated gas-pressure management
  • Built-in CO₂ gas warmer with heater status indication
  • Adjustable insufflation pressure: 4–30 mmHg
  • CO₂ / Air Mode selection for supported procedural requirements

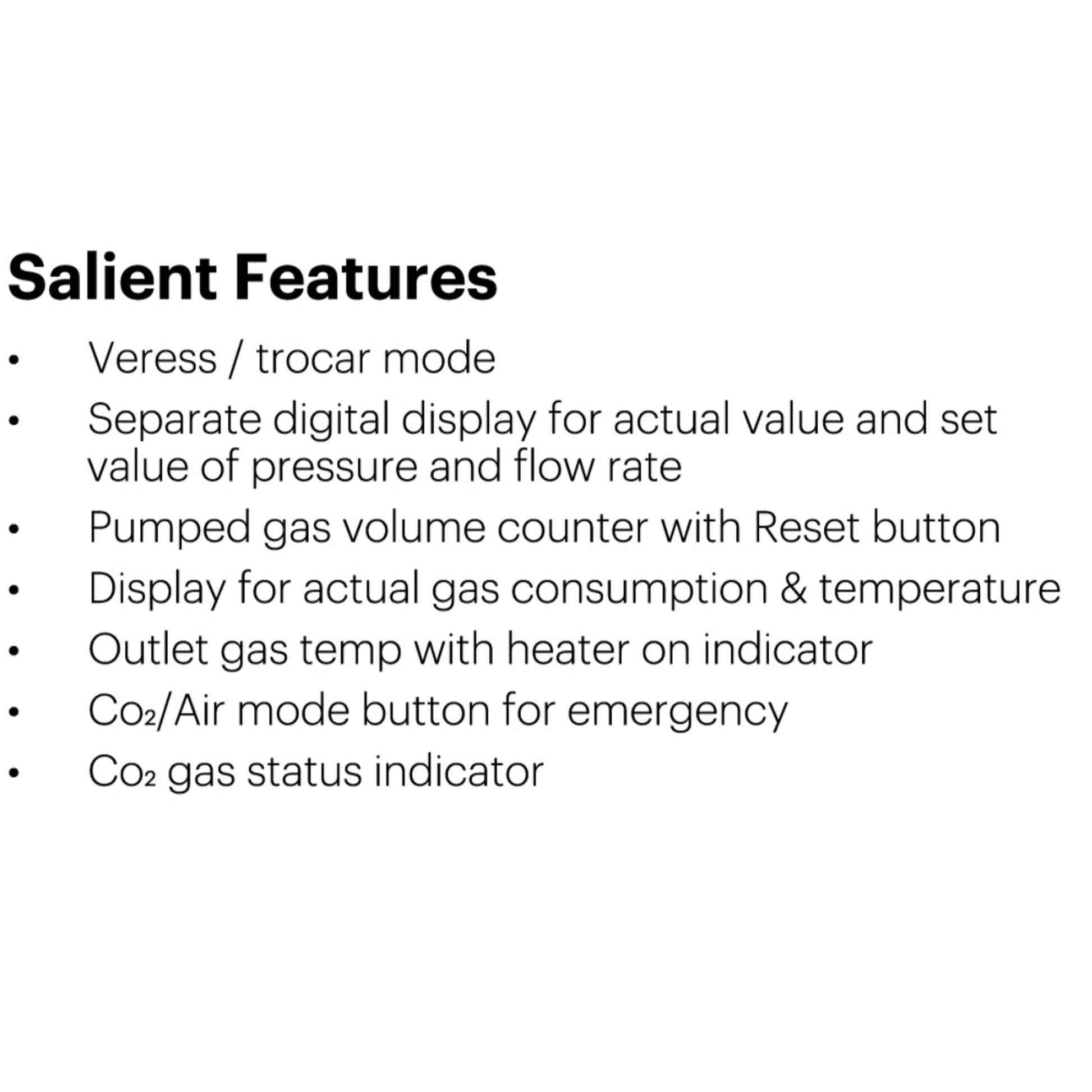

  • Veress / Trocar Mode for different stages of insufflation
  • Separate digital displays for set and actual pressure and flow
  • Gas-volume counter with reset function
  • Temperature and gas-consumption monitoring
  • Internal over-pressure release mechanism
  • Electronic memory for selected operating settings
  • Feather-touch control interface and durable metal enclosure

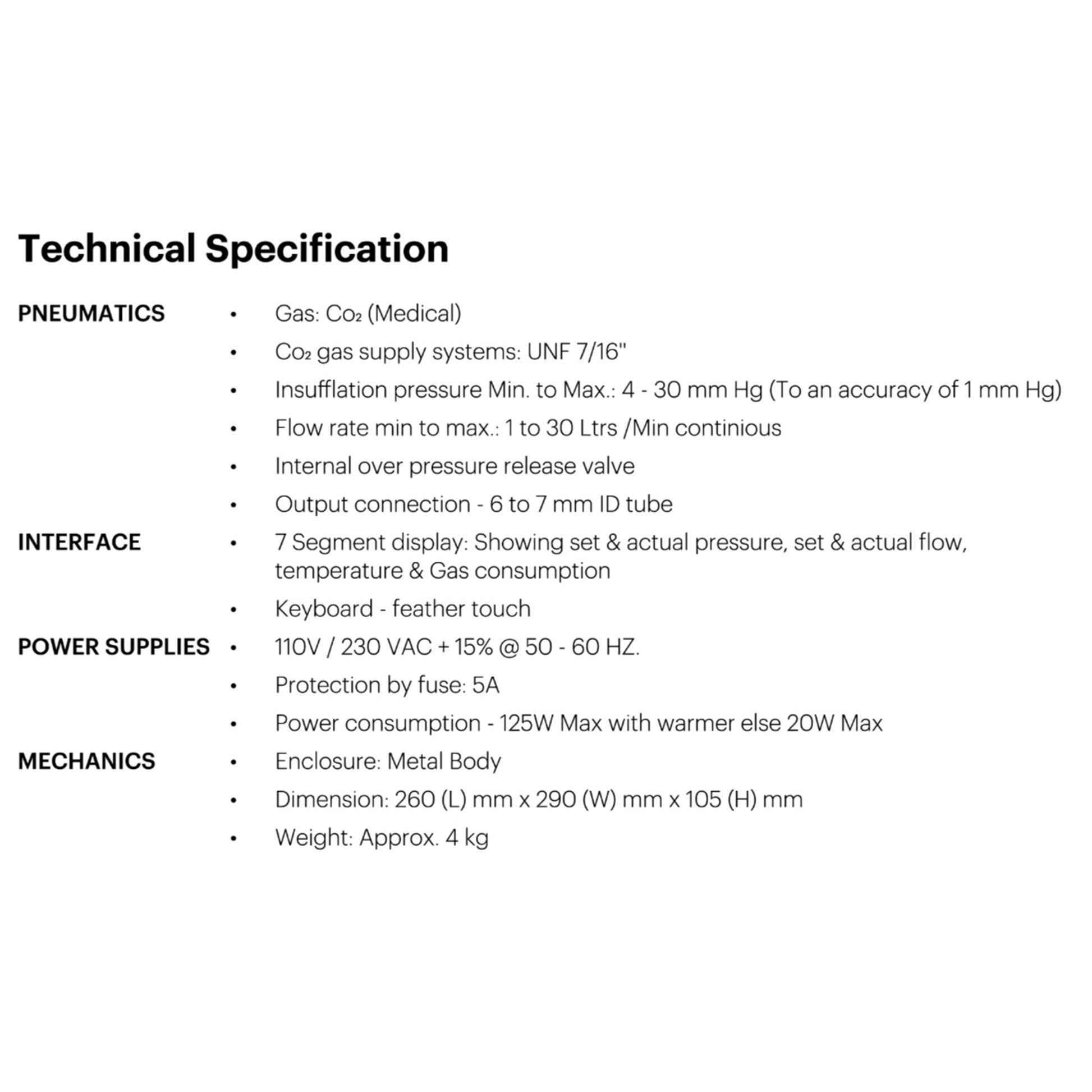

Technical Specifications

Specification Details
Brand TSW
Product Type High-flow laparoscopic CO₂ insufflator
Available Variants 30 L/min and 40 L/min
Gas Type Medical-grade CO₂
30L Flow Range 1–30 L/min continuous
40L Maximum Flow Up to 40 L/min
Pressure Range 4–30 mmHg
Pressure Accuracy 1 mmHg
Pressure Regulator Built in
Gas Warmer Built in
Operating Modes CO₂ / Air Mode and Veress / Trocar Mode
Display 7-segment digital display
Displayed Parameters Pressure, flow, temperature, delivered volume and gas consumption
Controls Feather touch
CO₂ Supply Connection UNF 7/16 inch
Gas Outlet Connection 6–7 mm internal-diameter tube
Over-Pressure Release Internal pressure-release valve
Input Supply 110 / 230 VAC ±15%, 50–60 Hz
Fuse 5A
Power Consumption Up to 125W with warmer
Power Without Warmer Up to 20W
Enclosure Metal body
Dimensions 260 × 290 × 105 mm
Weight Approx. 4 kg

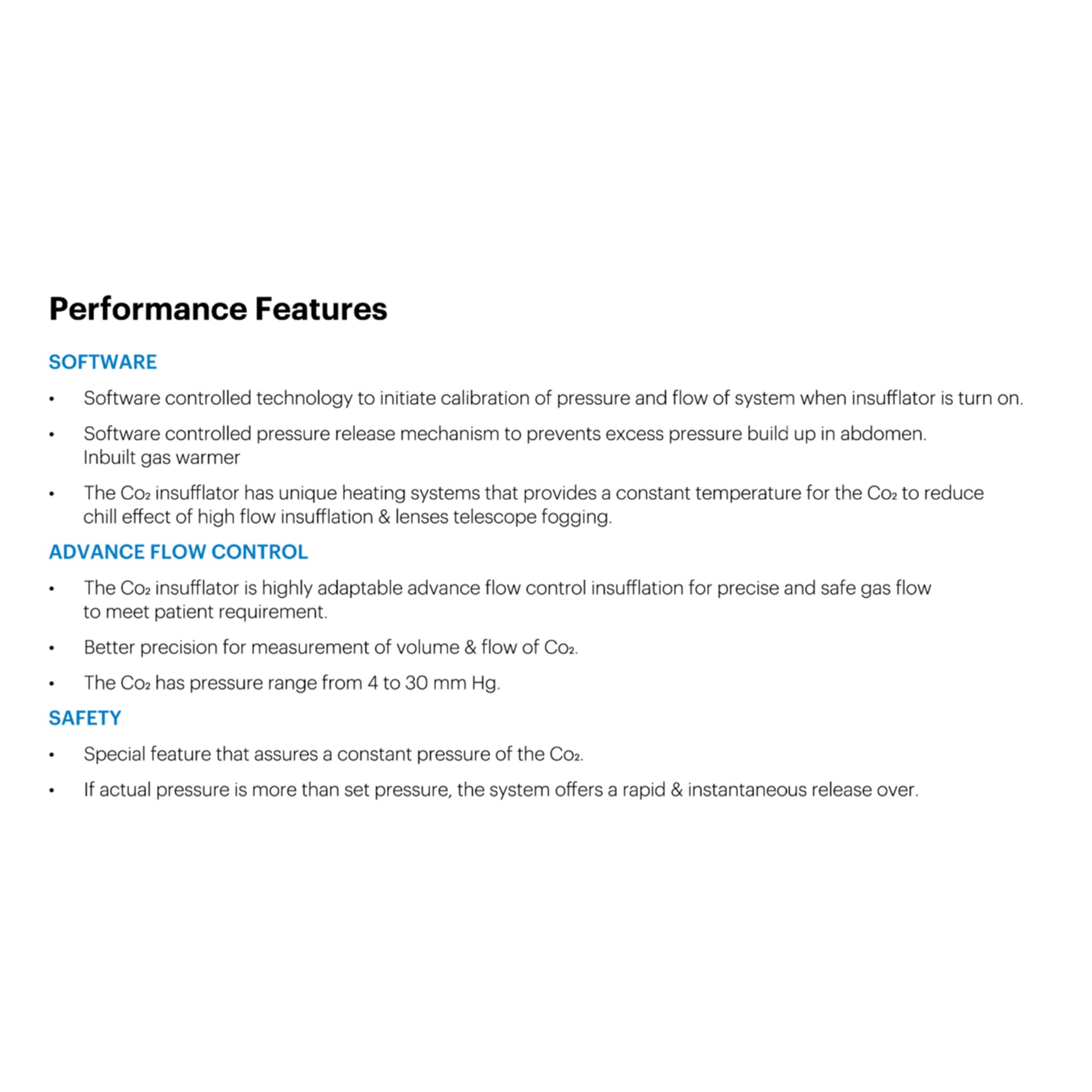

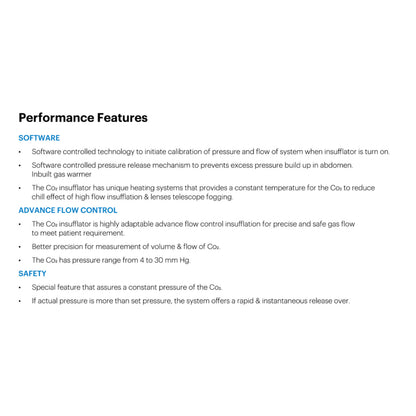

Monitoring & Safety Functions

  • Automatic pressure and flow calibration during start-up
  • Separate monitoring of selected and actual pressure
  • Separate monitoring of selected and actual flow rate
  • Pumped-gas volume counter with reset
  • Gas-consumption and outlet-temperature display
  • Heater and CO₂ supply status indication
  • Internal response to pressure above the selected level

Applications

  • General laparoscopic surgery
  • Gynecological laparoscopy
  • Urological laparoscopy
  • Gastrointestinal and colorectal surgery
  • Bariatric surgery
  • Hepatobiliary surgery
  • Compatible endoscopic procedures
  • Hospitals, laparoscopy centres and operating theatres

Professional Use & Ordering Information

For use by trained healthcare professionals in accordance with the supplied operating instructions. Select the required 30 L/min or 40 L/min variant before adding to cart. Confirm the electrical supply, CO₂ source, regulator connection, tubing compatibility and included accessories before ordering. Dimensions, electrical data or supplied fittings may vary slightly between production configurations; request confirmation if these details are critical.
