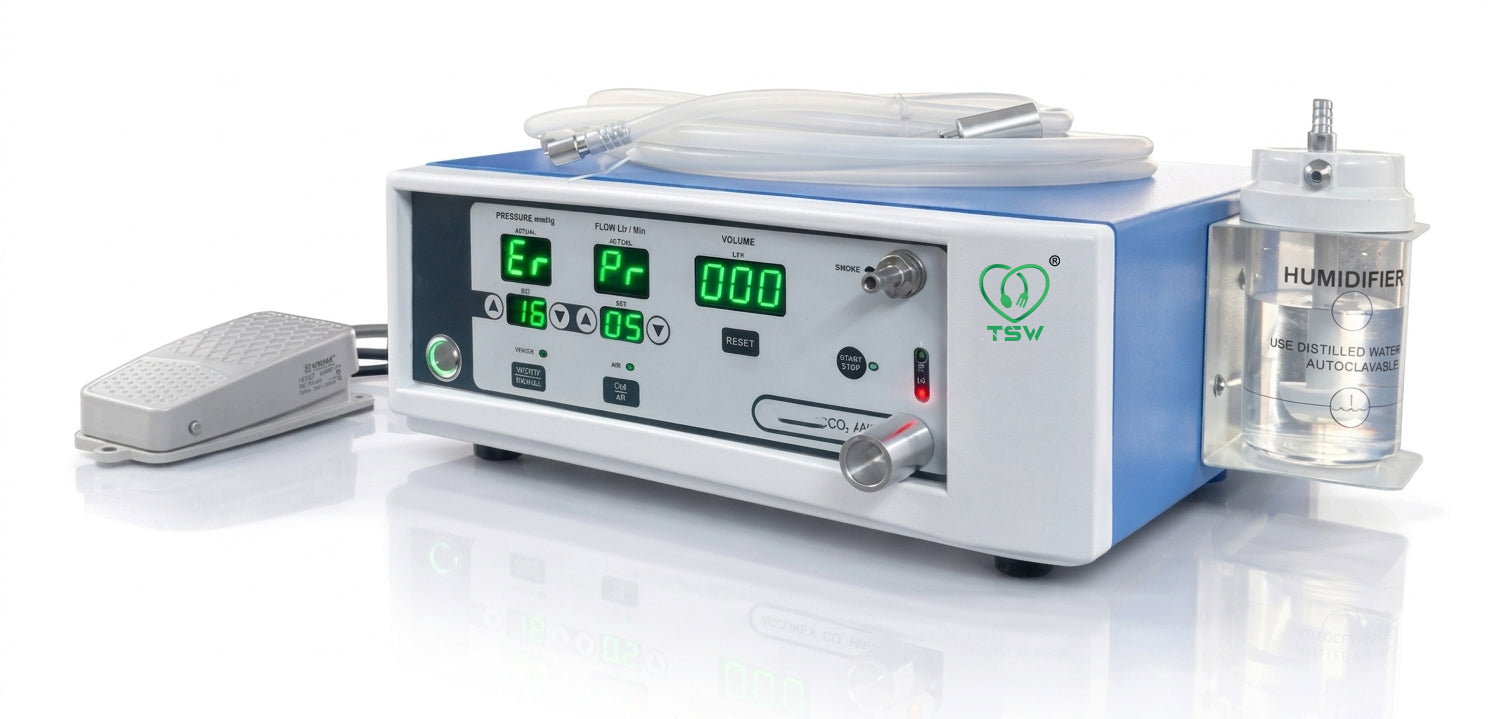

TSW Advance CO₂ Insufflator 40L – Smoke Evacuator, Warmer & Air Mode Set

The TSW Advance CO₂ Insufflator 40L with Smoke Evacuator combines high-flow surgical insufflation, integrated smoke evacuation, a built-in gas warmer and high-flow air mode in one compact unit. Designed for laparoscopic and compatible endoscopic procedures, it delivers a variable CO₂ flow of up to 40 L/min with an adjustable pressure range of 4–30 mmHg.

The digital front panel displays pressure, flow rate and delivered gas volume for convenient monitoring. Integrated smoke evacuation supports removal of surgical smoke from the operative cavity, while the built-in warmer conditions the insufflation gas during use. The supplied humidifier chamber, tubing and foot switch provide a complete operating-room setup.

Key Features

• High-flow CO₂ delivery: variable flow up to 40 L/min
• Adjustable pressure: 4–30 mmHg
• Integrated smoke evacuation for compatible laparoscopic procedures
• Built-in gas warmer for conditioned insufflation gas
• High-flow air mode for supported procedural requirements
• Digital monitoring: pressure, flow rate and delivered gas volume
• Continuous variable gas flow with rapid-response delivery
• Pressure safety system for controlled operation
• External humidifier chamber included
• Foot switch control and clearly arranged front-panel controls

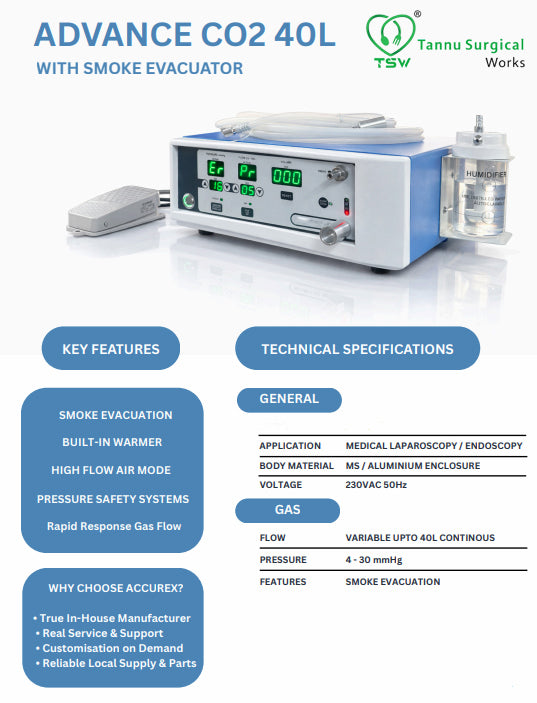

Technical Specifications

Main Functions

• CO₂ insufflation: controlled gas delivery to establish and maintain pneumoperitoneum
• Smoke evacuation: assists removal of surgical smoke from the operative cavity
• Gas warming: conditions insufflation gas during operation
• Air mode: provides an additional high-flow operating mode
• Digital monitoring: displays pressure, flow rate and delivered volume

Standard Accessories Included

• 1 × TSW Advance CO₂ 40L main unit
• 1 × External humidifier chamber
• 1 × Insufflation tubing set
• 1 × Foot switch
• 1 × Power cord
• Gas connection accessories as supplied
• User documentation / operating instructions

Applications

• General laparoscopic surgery
• Gynecological laparoscopy
• Urological laparoscopy
• Gastrointestinal and colorectal surgery
• Bariatric surgery
• Hepatobiliary surgery
• Compatible endoscopic procedures
• Hospitals and laparoscopic surgical centres

Professional Use & Compatibility

For use by trained healthcare professionals in accordance with the supplied operating instructions. Confirm the gas source, connector, tubing and 230V AC / 50 Hz electrical compatibility before ordering. Product appearance and accessory configuration may vary slightly by production batch without affecting the stated specifications.
