The TSW Hysteroscopy Irrigation & Suction Fluid Management System combines controlled fluid delivery and suction in one compact unit for diagnostic and operative hysteroscopy. It offers an adjustable irrigation flow of 200–1500 ml/min, irrigation pressure from 20–450 mmHg and factory-set suction pressure of -0.65 bar to support uterine cavity distension, fluid removal and clear procedural visualization.

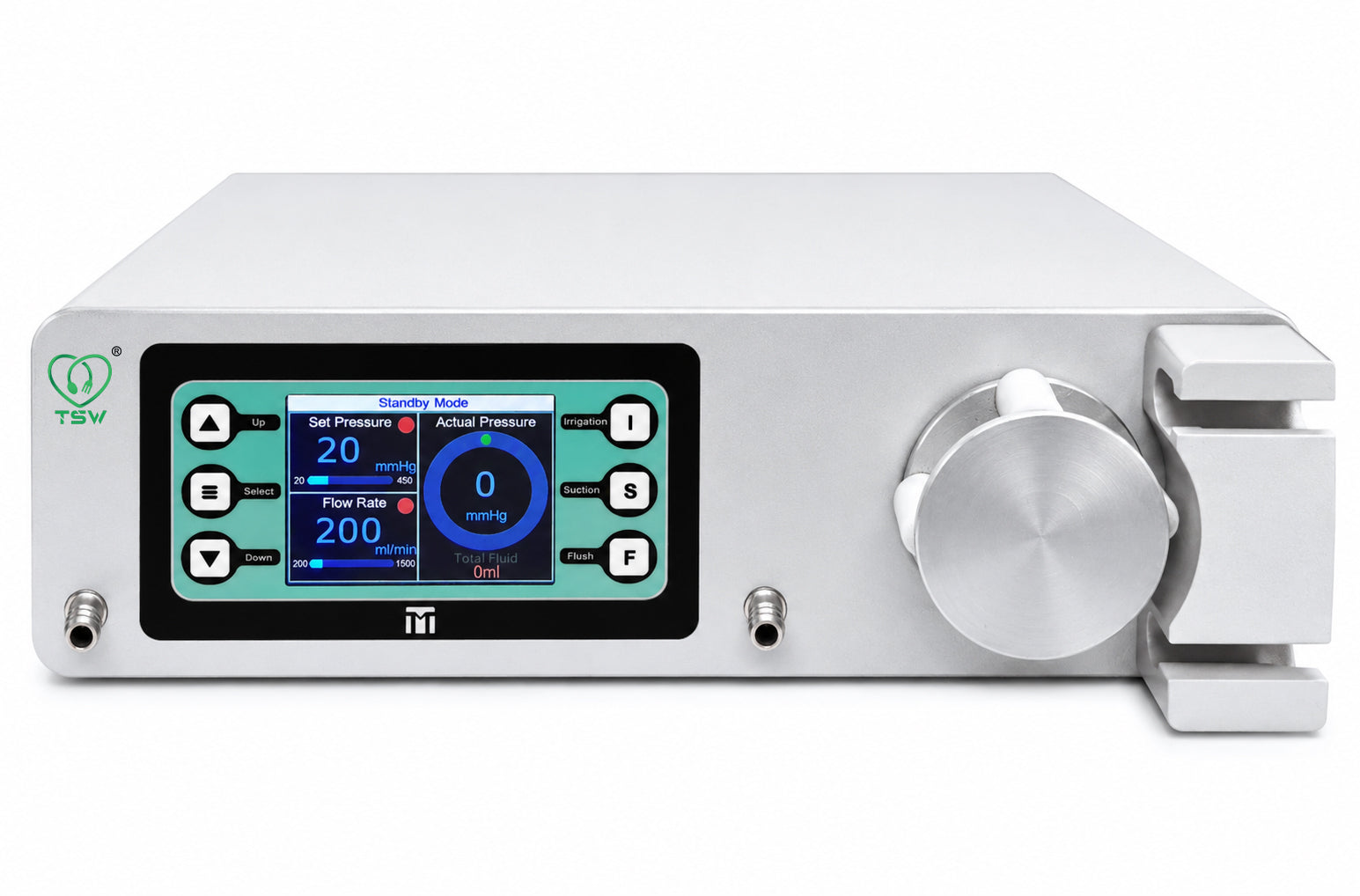

The digital interface displays set pressure, actual pressure, irrigation flow rate and total fluid usage for convenient real-time monitoring. Foot switch operation helps the surgical team control the system hands-free, while the included 1200 ml suction jar and tubing set provide a complete fluid-management setup.

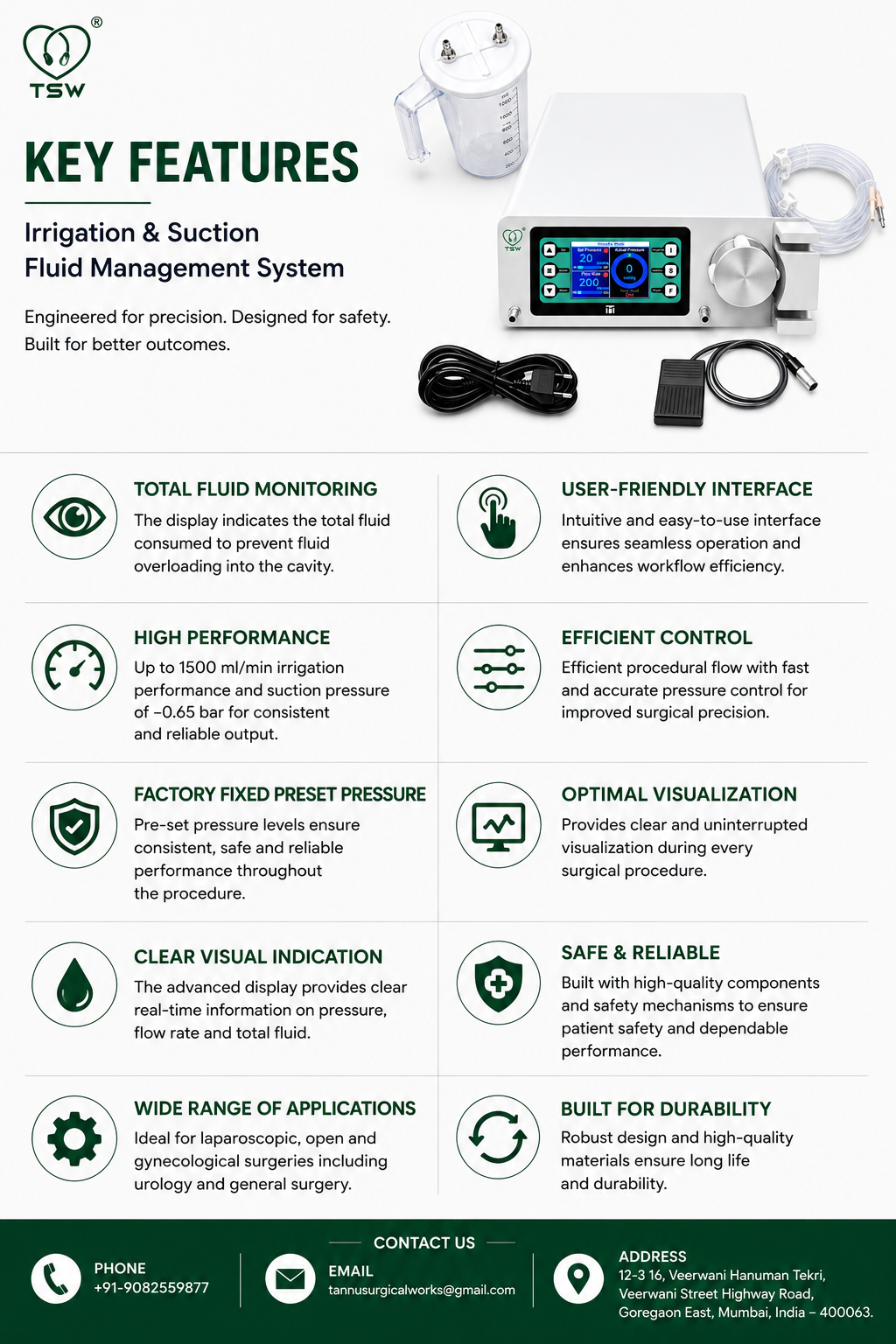

Key Features
- Combined irrigation and suction: integrated hysteroscopic fluid management
- Adjustable irrigation flow: 200–1500 ml/min
- Irrigation pressure range: 20–450 mmHg
- Suction pressure: factory set at -0.65 bar
- Digital monitoring: set pressure, actual pressure, flow rate and total fluid usage
- Foot switch operation: convenient hands-free control
- Irrigation, suction and flush controls on a clear operating interface
- Wide-voltage input: 100–240V AC, 50/60 Hz
- Complete accessory set: tubing, 1200 ml jar, foot switch and power cable included
- 18-month manufacturer warranty against eligible manufacturing defects

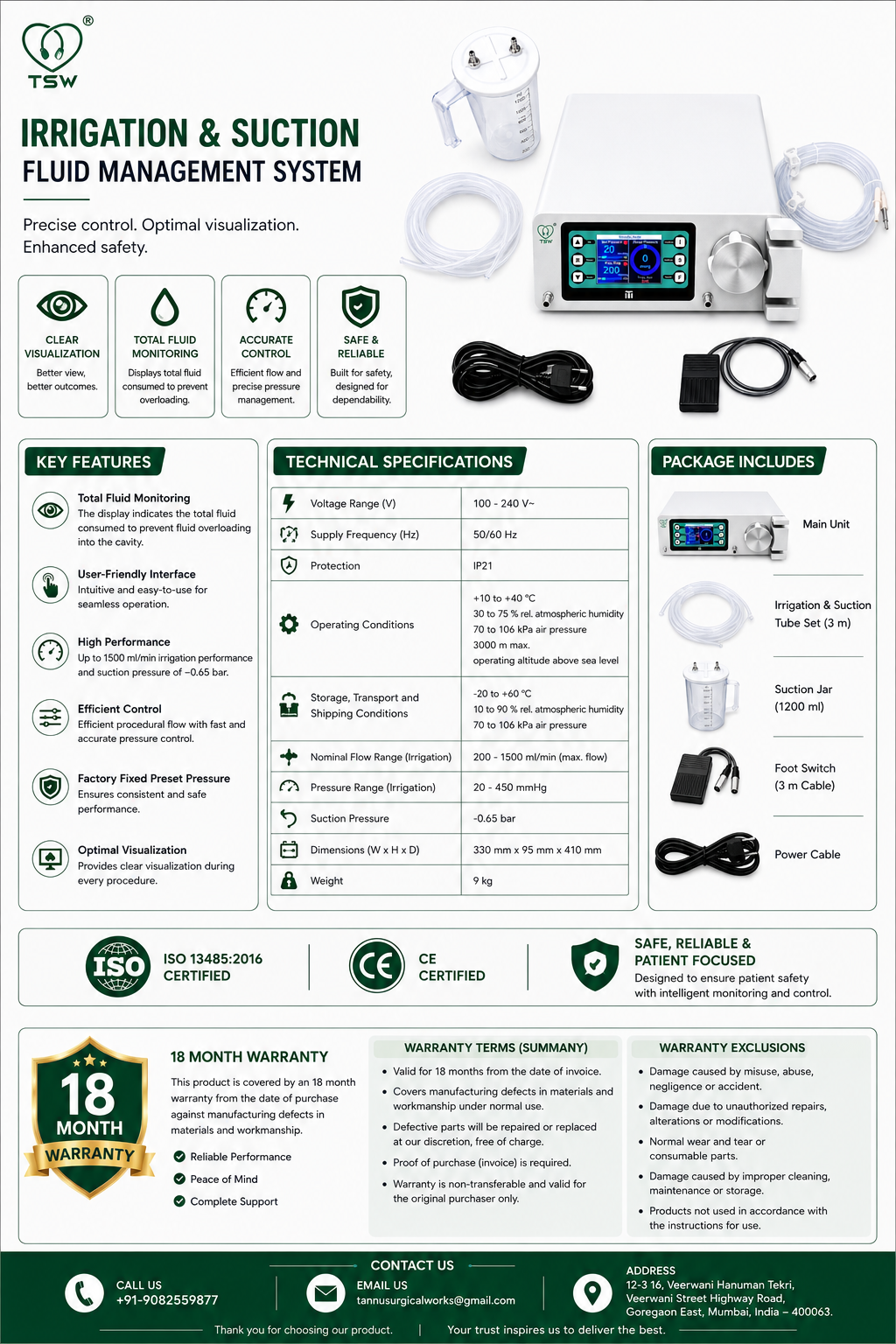

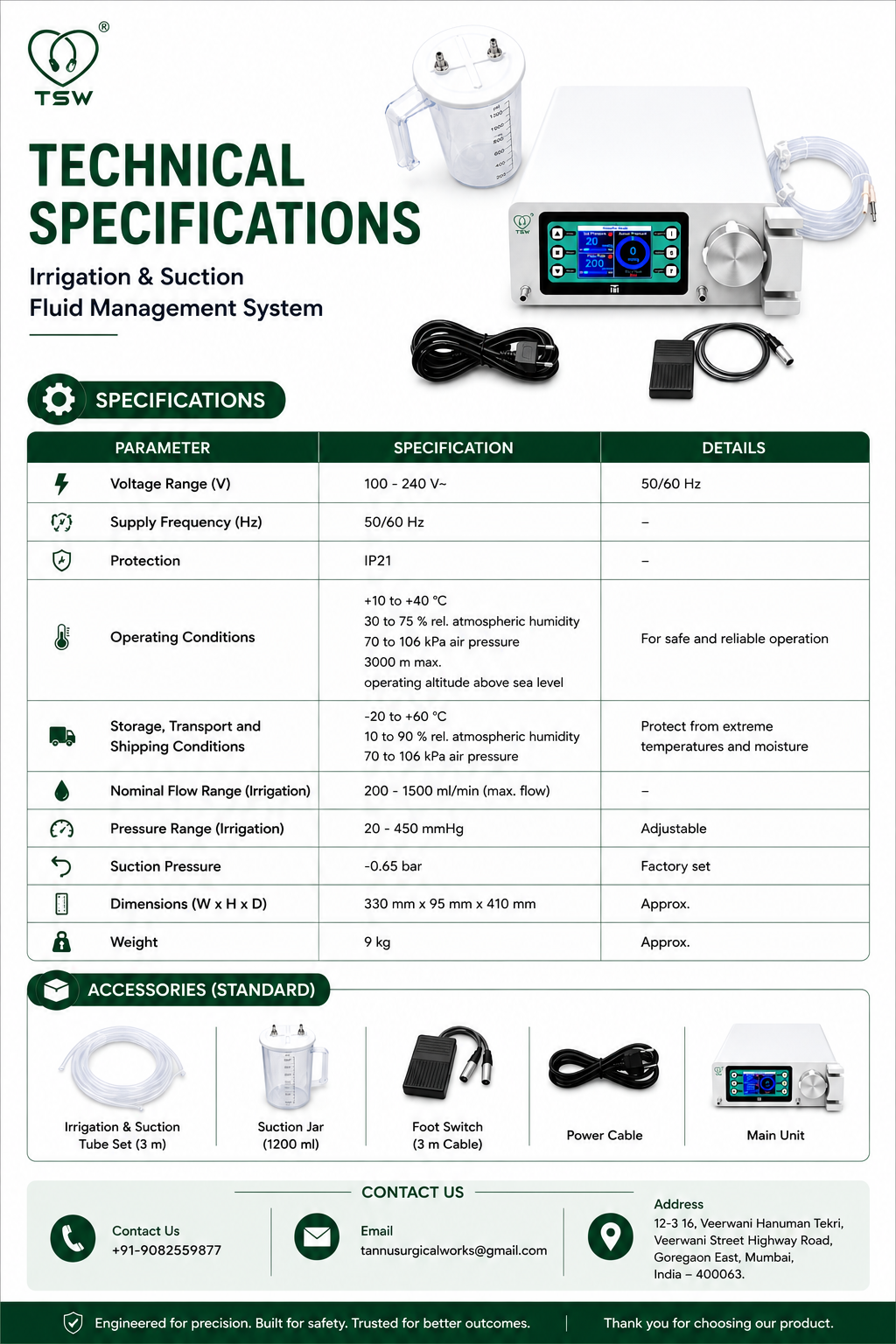

Technical Specifications
| Specification | Details |
|---|---|
| Brand | TSW |
| Equipment Type | Hysteroscopy Irrigation & Suction Fluid Management System |
| Primary Application | Diagnostic and operative hysteroscopy |
| Irrigation Flow Range | 200–1500 ml/min |
| Maximum Irrigation Flow | 1500 ml/min |
| Irrigation Pressure Range | 20–450 mmHg |
| Suction Pressure | -0.65 bar, factory set |
| Display Parameters | Set pressure, actual pressure, irrigation flow rate and total fluid usage |
| Control Functions | Irrigation, suction, flush, standby and parameter adjustment |
| Operating Control | Digital interface and foot switch |
| Input Voltage | 100–240V AC |
| Supply Frequency | 50/60 Hz |
| Protection Rating | IP21 |
| Operating Temperature | +10°C to +40°C |
| Operating Humidity | 30–75% RH |
| Operating Air Pressure | 70–106 kPa |
| Maximum Operating Altitude | 3000 m |
| Storage Temperature | -20°C to +60°C |
| Storage Humidity | 10–90% RH |
| Storage Air Pressure | 70–106 kPa |
| Dimensions (W × H × D) | 330 × 95 × 410 mm |
| Weight | Approx. 9 kg |
| Warranty | 18 months manufacturer warranty |

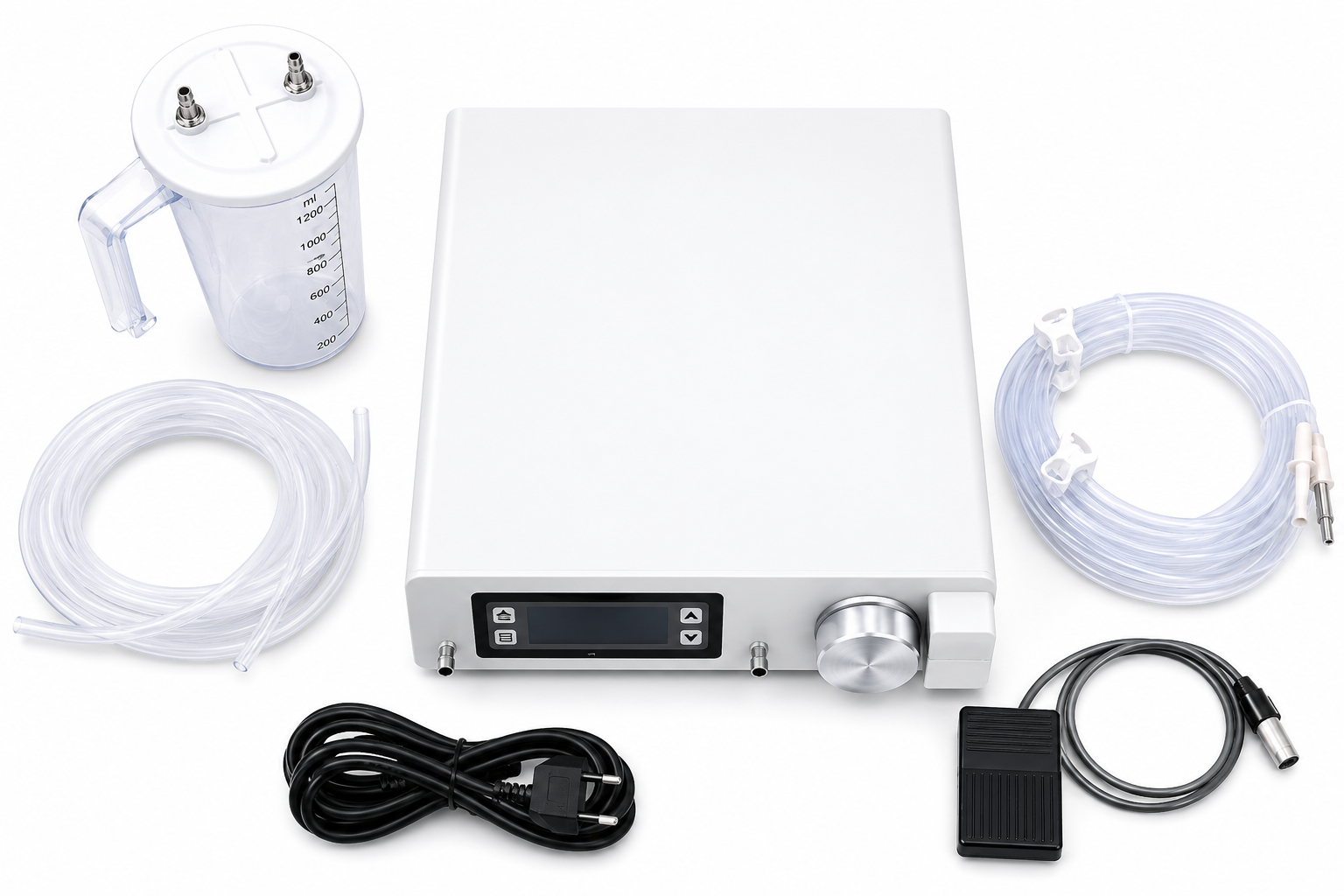

Standard Accessories Included
- TSW irrigation and suction fluid management main unit
- 3-metre irrigation and suction tubing set
- 1200 ml suction jar
- Foot switch with 3-metre cable
- Power cable
- User documentation / operating manual
Applications
- Diagnostic hysteroscopy
- Operative hysteroscopy
- Hysteroscopic irrigation and suction
- Uterine cavity fluid management and distension
- Gynecology departments and hysteroscopy centres
- Hospitals, specialty clinics and day-care surgical facilities
Warranty
This TSW hysteroscopy irrigation and suction system includes an 18-month manufacturer warranty from the invoice date against eligible manufacturing defects in materials and workmanship under normal intended use. Physical damage, misuse, unauthorized repair, consumable parts and normal wear are not covered. Proof of purchase may be required.
Professional Use & Compatibility
For use by trained healthcare professionals. Confirm tubing, connector and hysteroscope compatibility before ordering. Product appearance and accessory configuration may vary slightly by production batch without affecting the stated specifications.
