TSW Hysteroscopy Pump & Fluid Management System – 1500 ml/min Complete Set
TSW Hysteroscopy Pump & Fluid Management System – 1500 ml/min Complete Set
Estimated Dispatch: 2–4 Business Days
Couldn't load pickup availability
ISO & CE Certified
- Express Delivery
- Secure Payment
The TSW Hysteroscopy Pump & Fluid Management System is designed for controlled irrigation and fluid delivery during diagnostic and operative hysteroscopy. It provides an adjustable flow range of 200–1500 ml/min and pressure control from 20–450 mmHg, helping maintain uterine cavity distension and a clear viewing field according to procedural requirements.

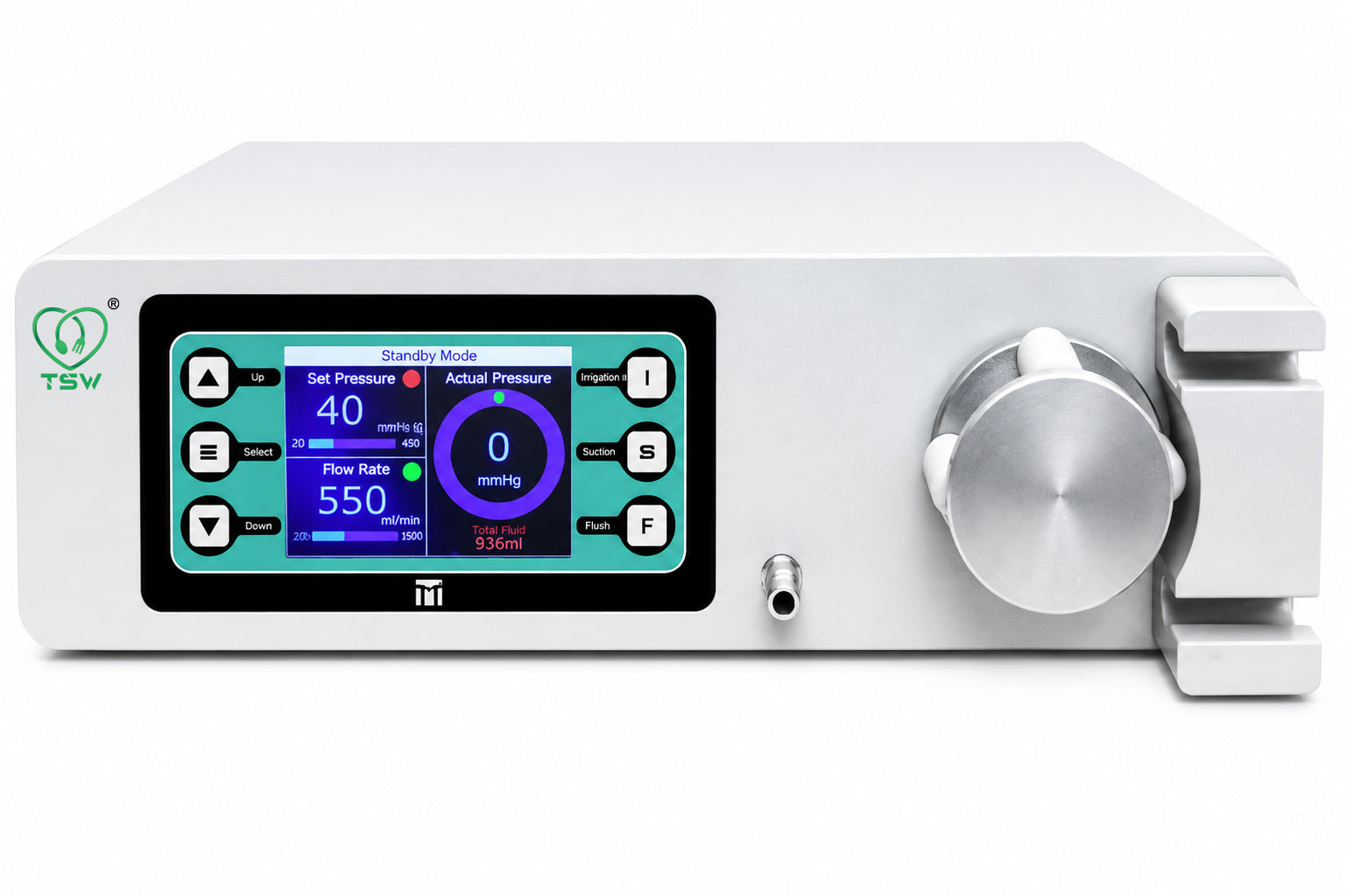

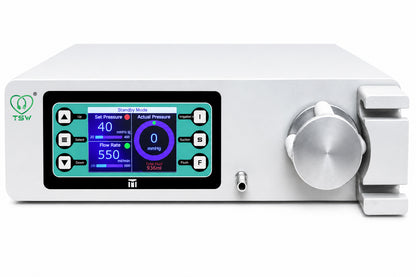

The digital interface displays set pressure, actual pressure, flow rate and total fluid usage for convenient real-time monitoring. A foot switch supports hands-free irrigation control, while the compact console and included accessories provide a practical setup for hospitals, gynecology departments, hysteroscopy centres and day-care surgical facilities.

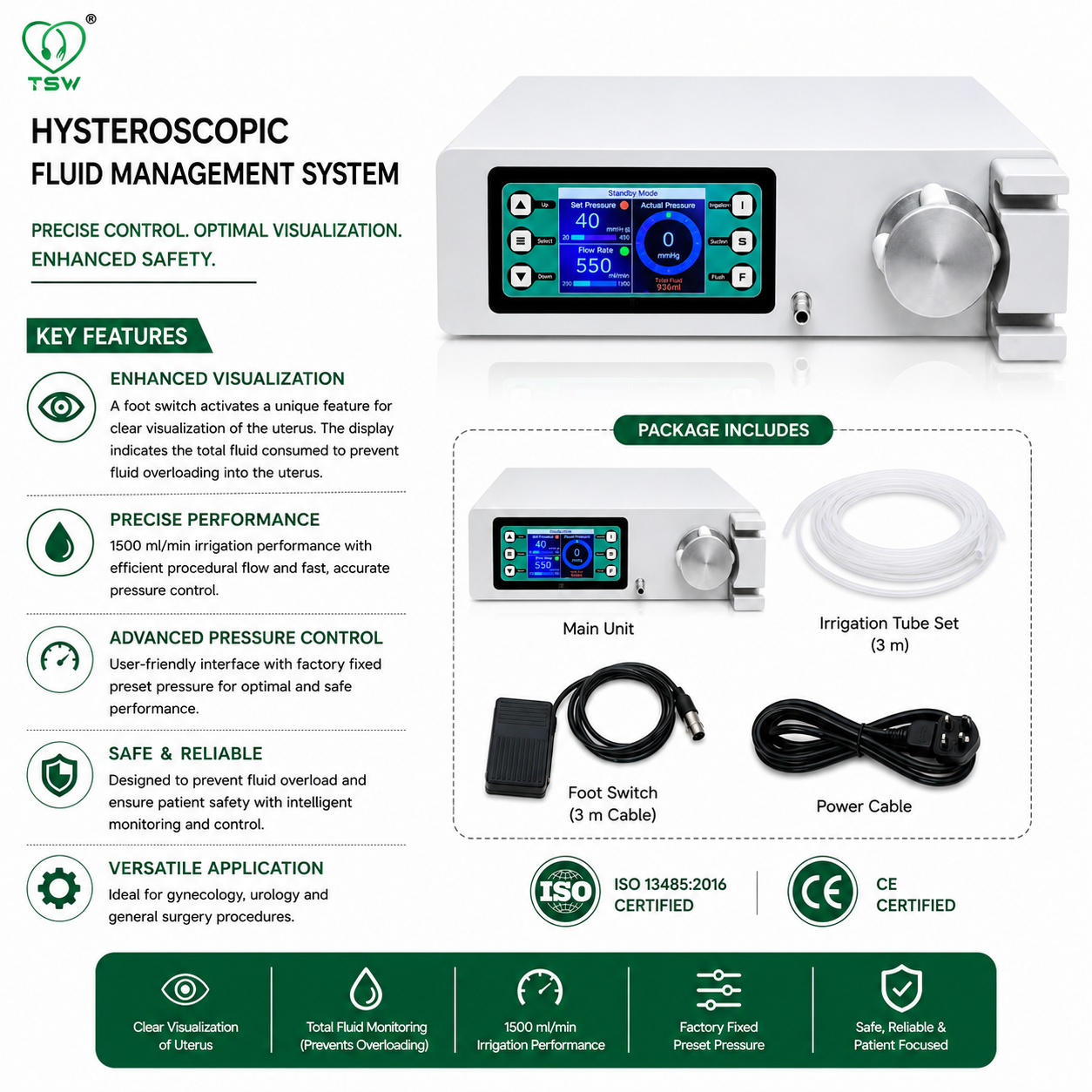

Key Features
- Adjustable irrigation flow: 200–1500 ml/min
- Pressure control range: 20–450 mmHg
- Digital monitoring: set pressure, actual pressure, flow rate and total fluid usage
- Foot switch operation: convenient hands-free irrigation control
- Controlled fluid delivery: supports stable uterine cavity distension
- Clear operating interface: straightforward pressure and flow adjustment
- Wide-voltage input: 100–240V AC, 50/60 Hz
- Compact console: suitable for modern OT and hysteroscopy setups
- Complete accessory set: tubing, Y-connector, foot switch and power cable included
- 18-month manufacturer warranty against eligible manufacturing defects

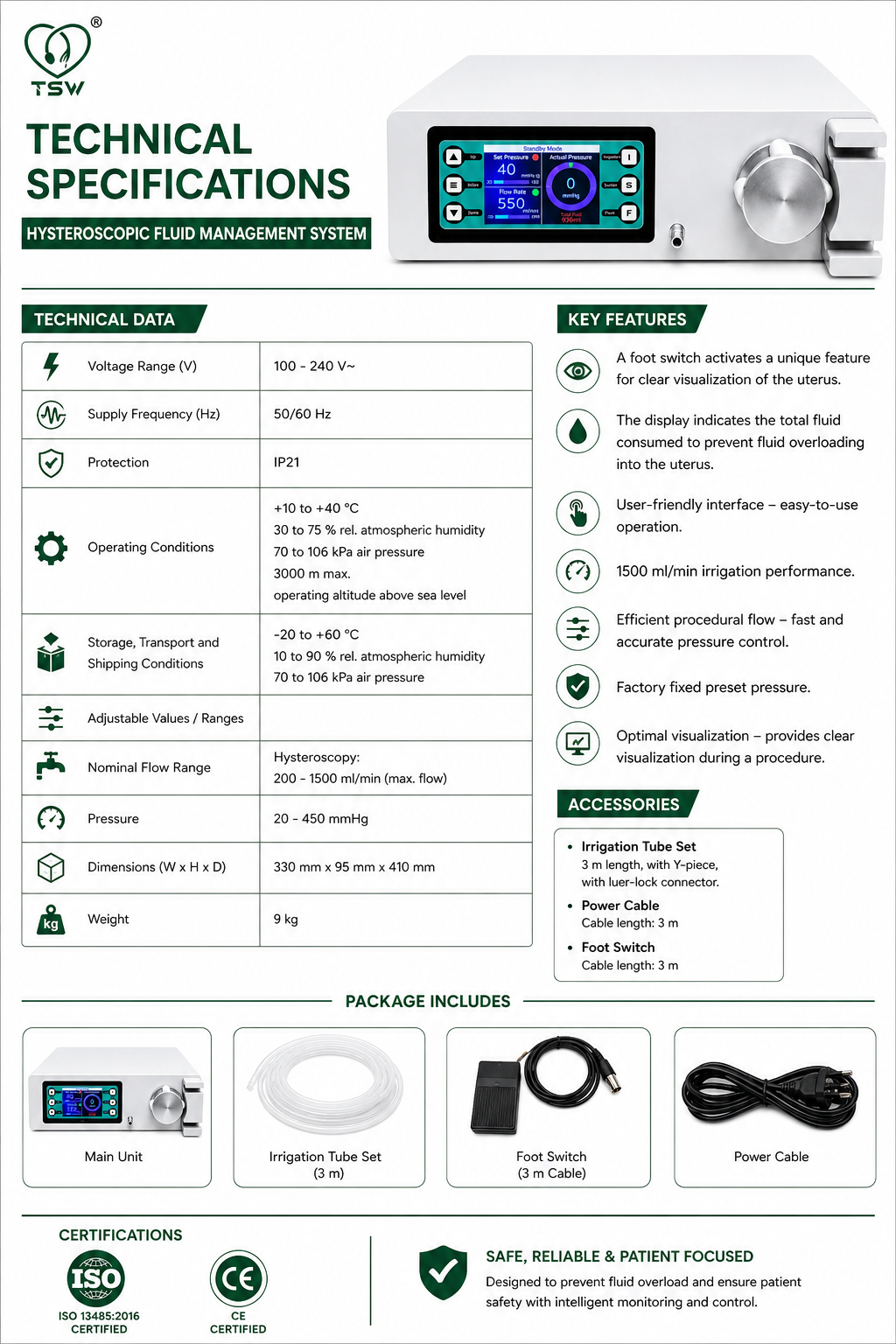

Technical Specifications
| Specification | Details |
|---|---|
| Brand | TSW |
| Equipment Type | Hysteroscopic Fluid Management / Irrigation Pump |
| Application | Diagnostic and operative hysteroscopy |
| Flow Range | 200–1500 ml/min |
| Maximum Flow | 1500 ml/min |
| Pressure Range | 20–450 mmHg |
| Display Parameters | Set pressure, actual pressure, flow rate and total fluid usage |
| Control | Digital interface and foot switch |
| Input Voltage | 100–240V AC |
| Supply Frequency | 50/60 Hz |
| Protection Rating | IP21 |
| Operating Temperature | +10°C to +40°C |
| Operating Humidity | 30–75% RH |
| Operating Air Pressure | 70–106 kPa |
| Maximum Operating Altitude | 3000 m |
| Storage Temperature | -20°C to +60°C |
| Storage Humidity | 10–90% RH |
| Storage Air Pressure | 70–106 kPa |
| Dimensions (W × H × D) | 330 × 95 × 410 mm |
| Weight | Approx. 9 kg |
| Warranty | 18 months manufacturer warranty |

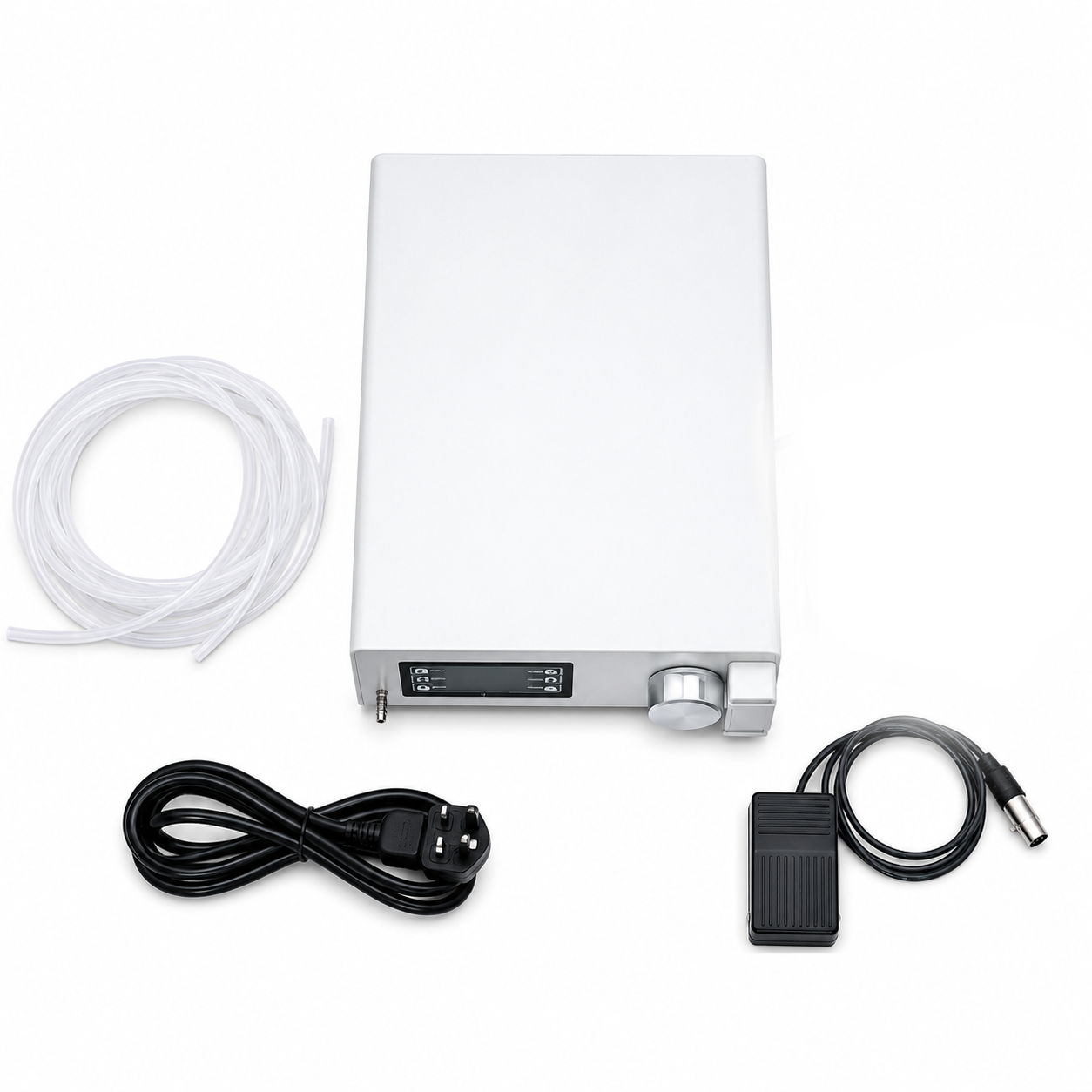

Standard Accessories Included
- TSW hysteroscopic fluid management main unit
- 3-metre irrigation tubing set
- Y-piece with Luer-lock connector
- Foot switch with 3-metre cable
- Power cable
- User documentation / operating manual
Applications
- Diagnostic hysteroscopy
- Operative hysteroscopy
- Hysteroscopic irrigation and uterine cavity distension
- Gynecology departments and hysteroscopy centres
- Hospitals, clinics and day-care surgical facilities
Warranty
This TSW hysteroscopy pump includes an 18-month manufacturer warranty from the invoice date against eligible manufacturing defects in materials and workmanship under normal intended use. Physical damage, misuse, unauthorized repair, consumable parts and normal wear are not covered. Proof of purchase may be required.
Professional Use & Compatibility
For use by trained healthcare professionals. Confirm tubing, connector and hysteroscope compatibility before ordering. Product appearance and accessory configuration may vary slightly by production batch without affecting the stated specifications.
FDA Approved
strict quality control
