TSW Wet Field Eye Bipolar Coagulator – Ophthalmic Cautery Complete Set
TSW Wet Field Eye Bipolar Coagulator – Ophthalmic Cautery Complete Set
Estimated Dispatch: 2–4 Business Days
Couldn't load pickup availability
ISO & CE Certified
- Express Delivery
- Secure Payment

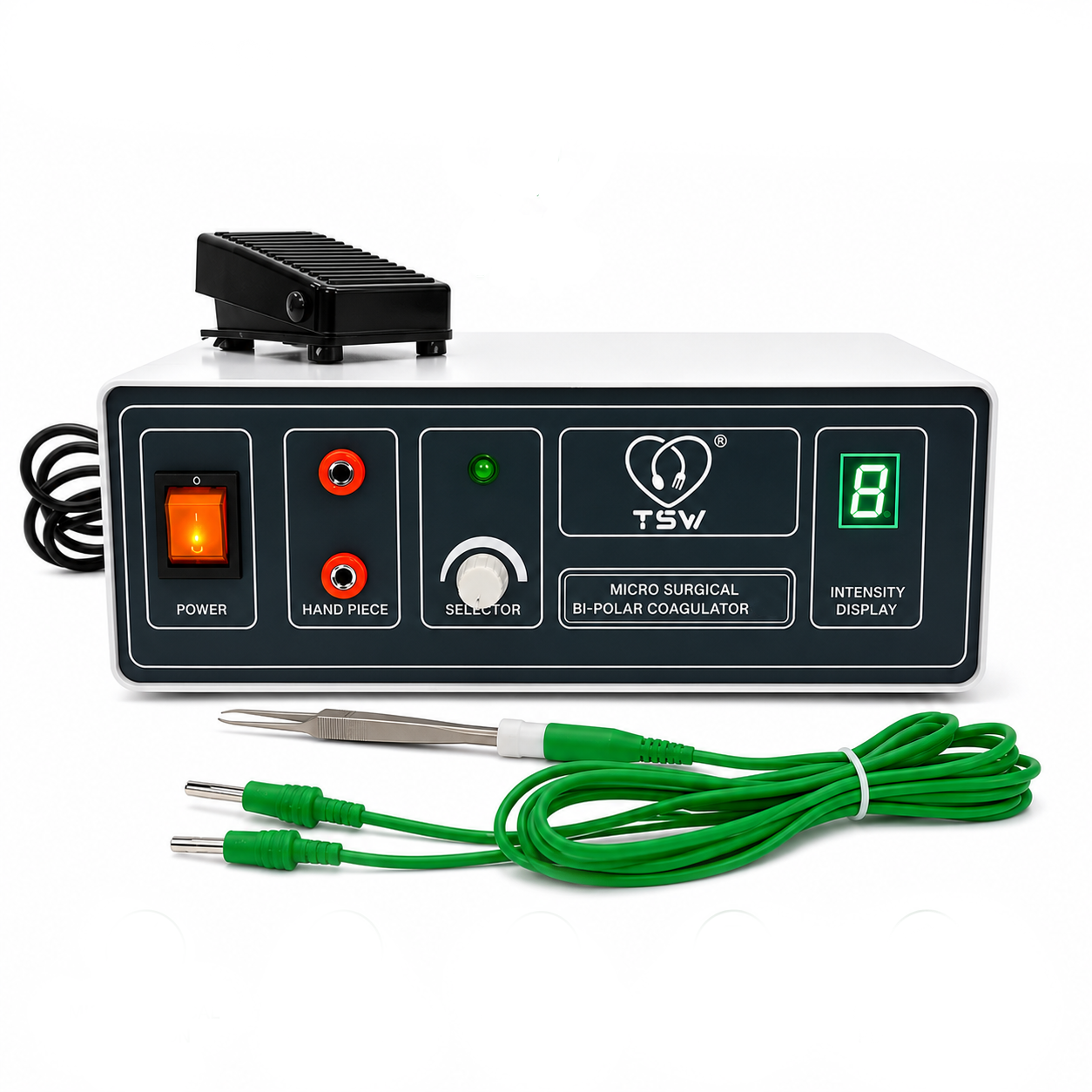

The TSW Wet Field Eye Bipolar Coagulator is a compact, low-power isolated bipolar electrosurgical unit designed for controlled coagulation during ophthalmic and delicate microsurgical procedures. With a maximum RF output of 5 W and 0–9 variable intensity settings, it provides adjustable bipolar energy through the supplied forceps.
High-frequency current passes between the two bipolar forceps tips, concentrating the coagulation effect at the selected site. The unit is designed for use in saline-irrigated wet fields and bloody operative fields where controlled bipolar coagulation is required. A digital intensity display, activation indicator, audible indication and detachable foot switch support straightforward operation.

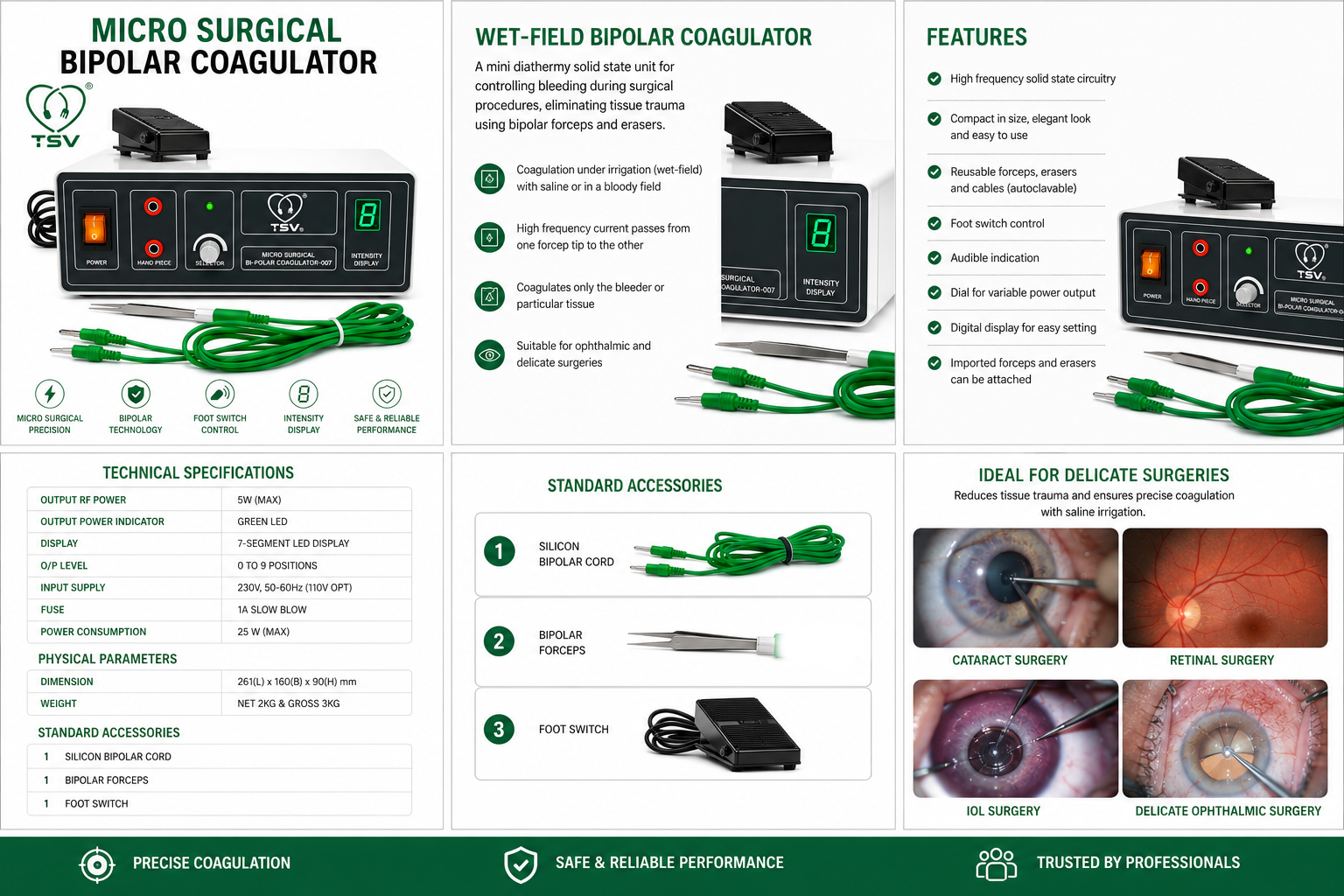

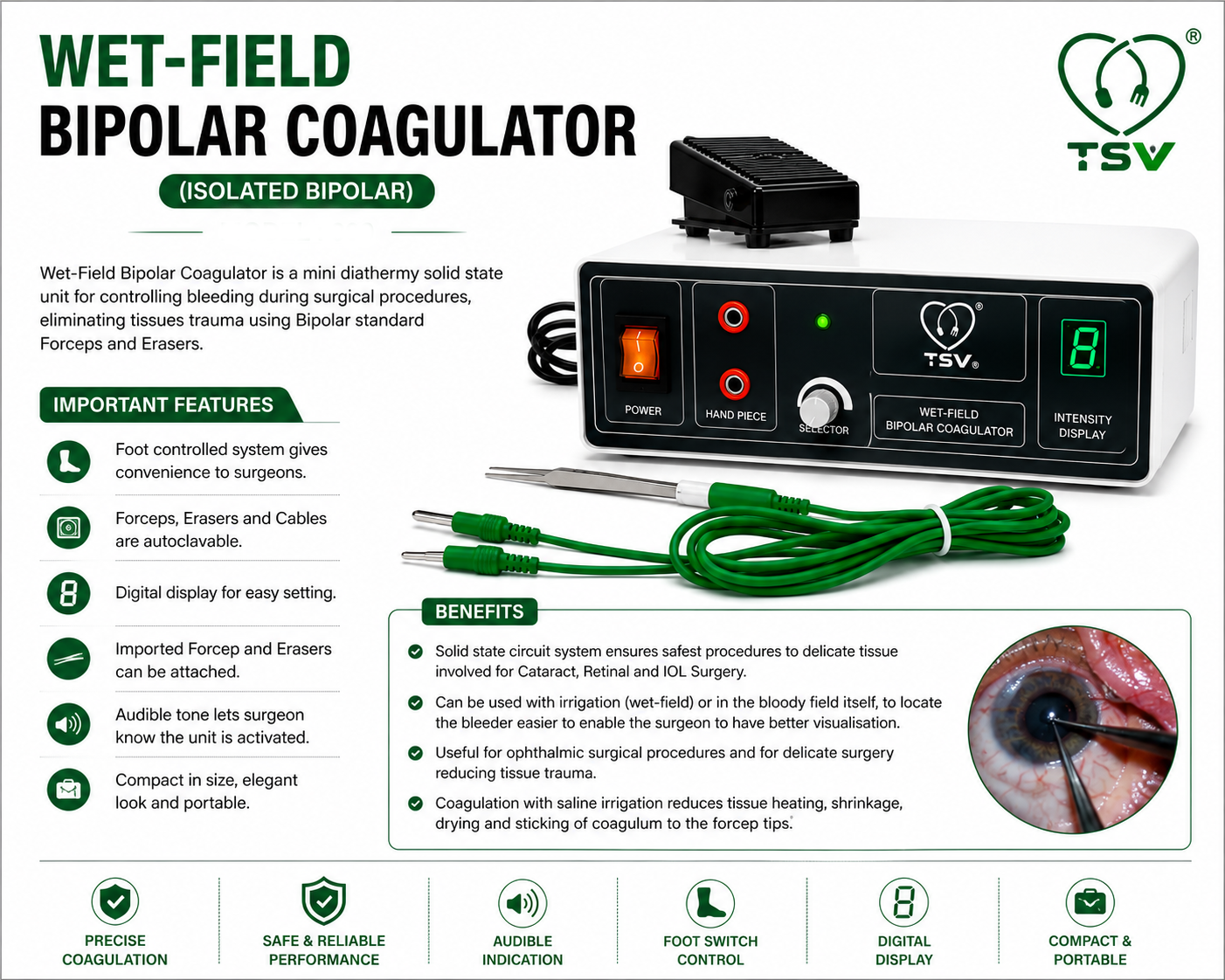

Key Features
- Isolated bipolar technology: energy flows between the two forceps tips
- Wet-field operation: suitable for use with saline irrigation
- Maximum RF output: 5 W
- Variable intensity control: 0–9 selectable positions
- Digital display: clear 7-segment intensity indication
- Foot switch activation: convenient hands-free HF control
- Audible and visual indication during activation
- Compact construction: approximately 2 kg net weight
- Reusable bipolar accessories: forceps and silicone cord included
- Complete set: main unit, bipolar forceps, cable and foot switch

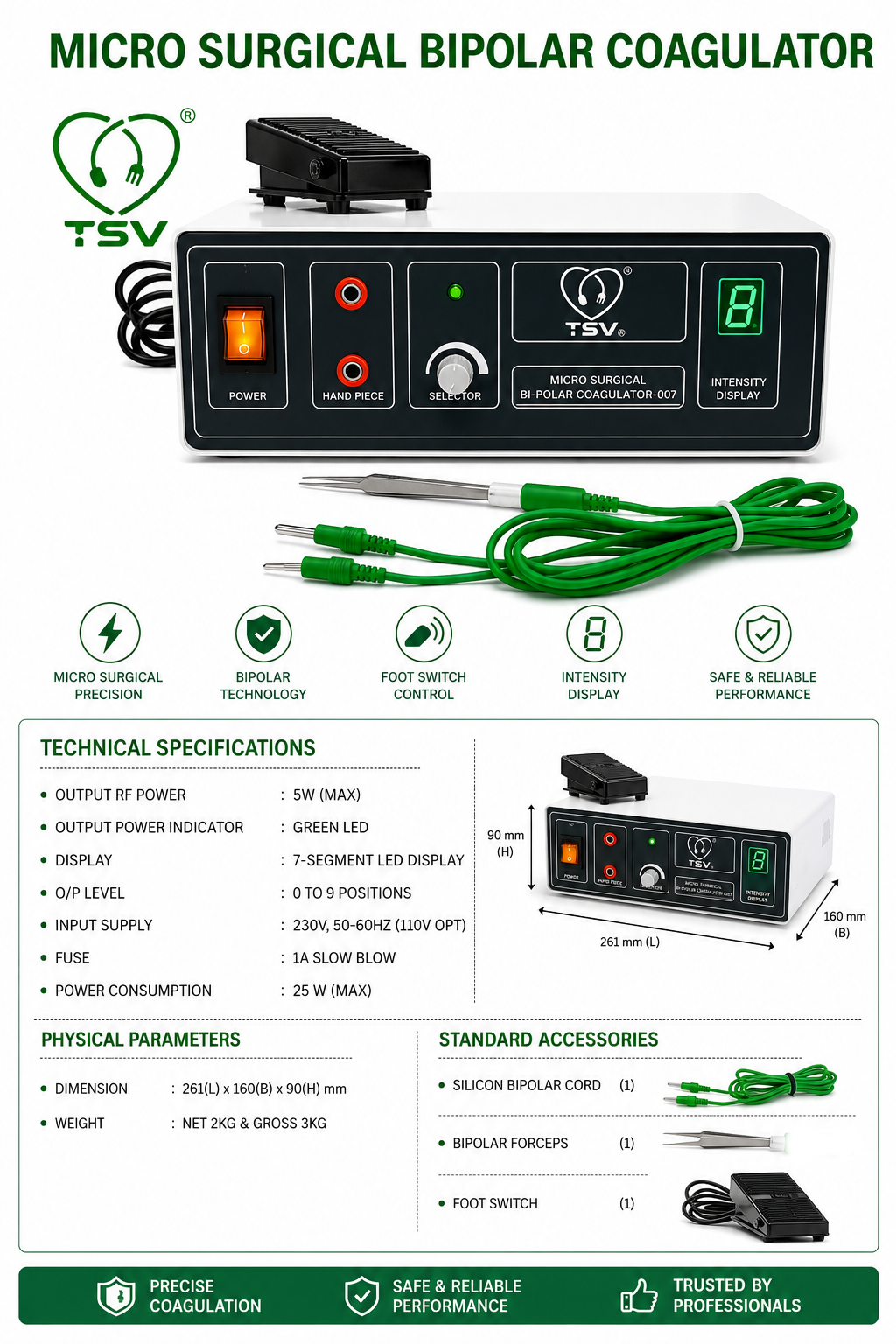

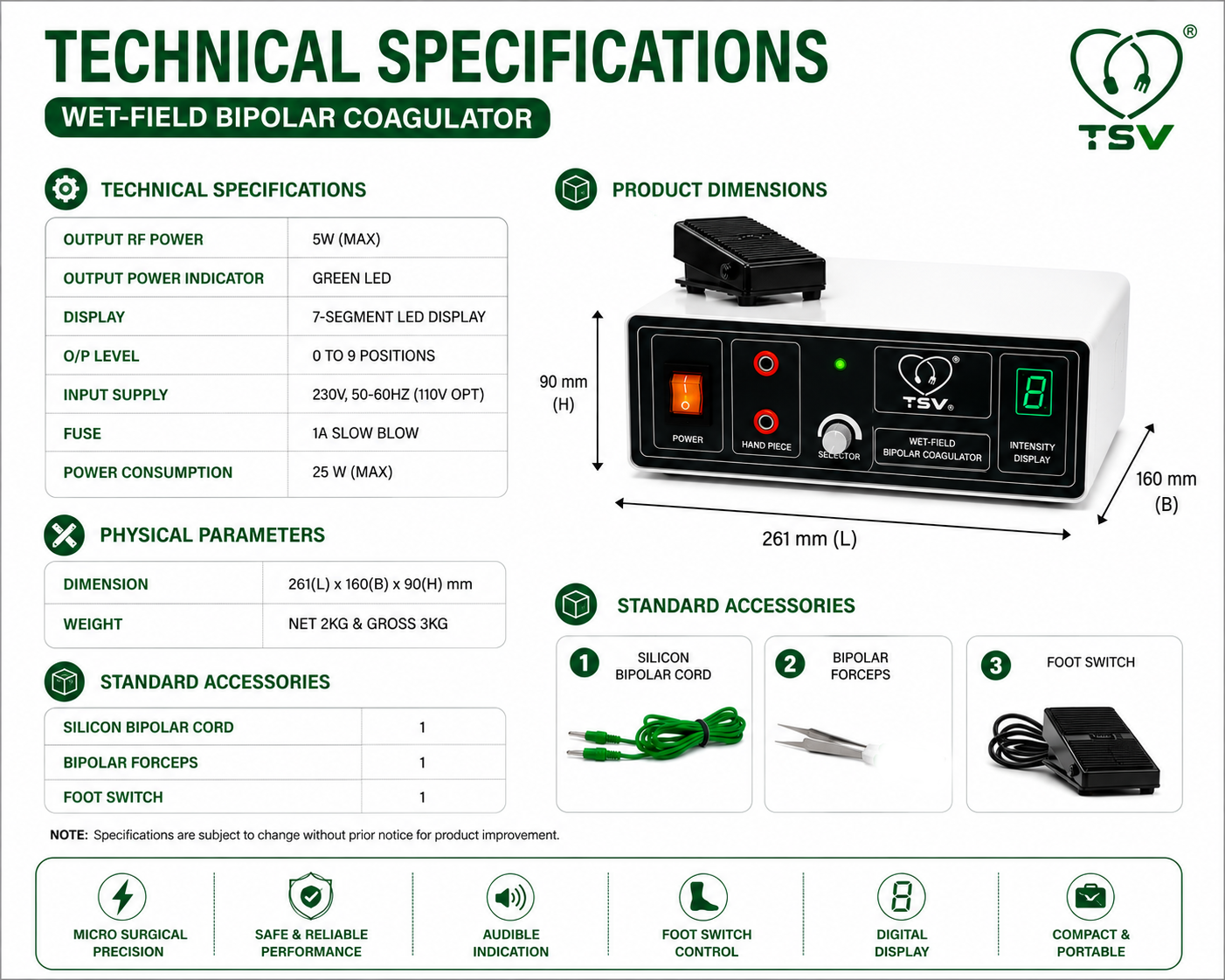

Technical Specifications
| Specification | Details |
|---|---|
| Brand | TSW |
| Product Type | Wet-Field Bipolar Coagulator |
| Technology | Isolated bipolar electrosurgery |
| Operation | Bipolar coagulation |
| Maximum RF Output | 5 W |
| Output / Intensity Levels | 0–9 positions |
| Display | 7-segment LED display |
| Output Indicator | Green LED |
| HF Activation | Detachable foot switch |
| Control | Variable intensity selector |
| Input Supply | 230V AC, 50/60 Hz |
| 110V Option | Available; confirm before ordering |
| Fuse | 1A slow-blow |
| Maximum Power Consumption | 25 W |
| Wet-Field Compatible | Yes |
| Dimensions (L × W × H) | 261 × 160 × 90 mm |
| Net Weight | Approx. 2 kg |
| Gross Weight | Approx. 3 kg |

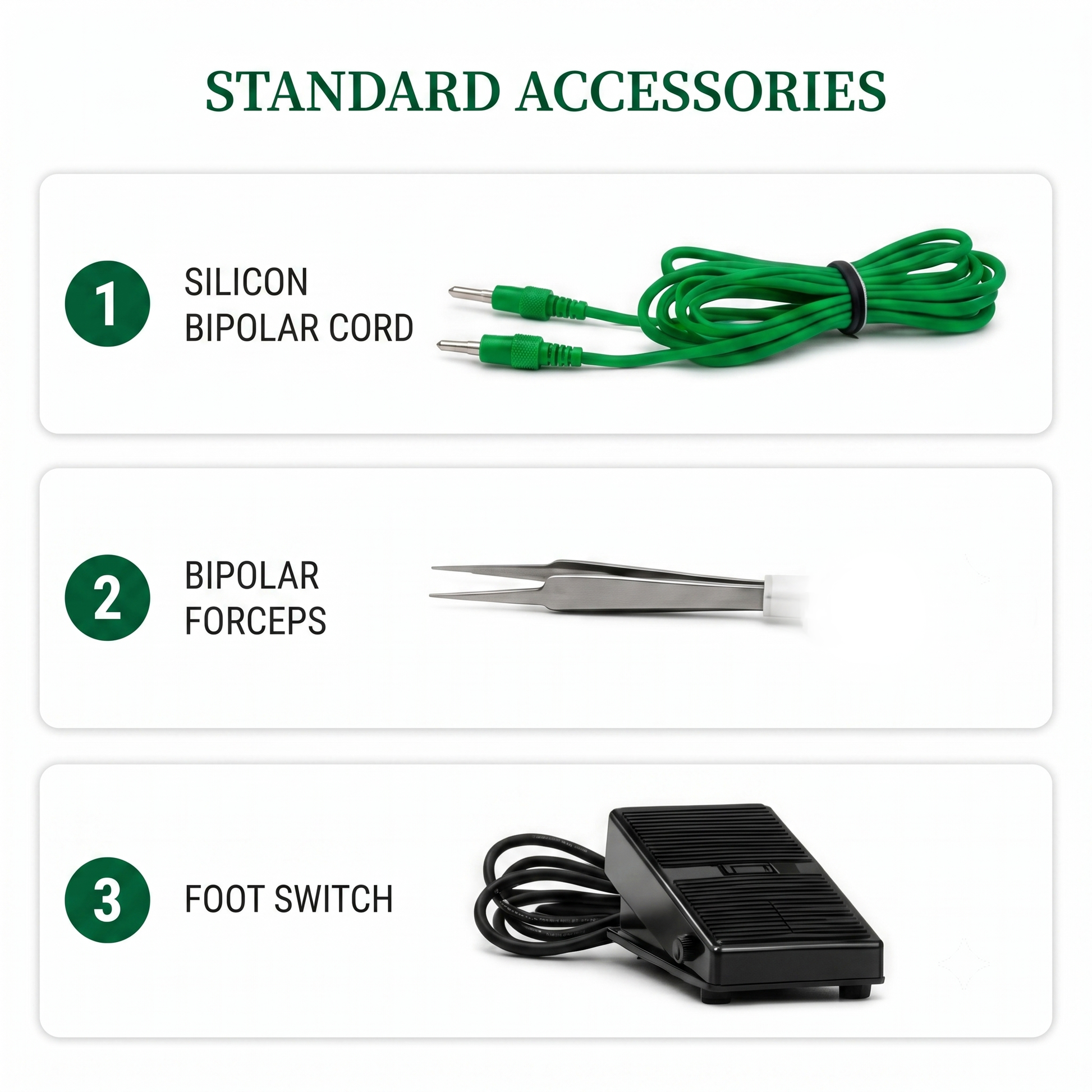

Standard Accessories Included
- 1 × TSW wet-field bipolar coagulator main unit
- 1 × Bipolar forceps
- 1 × Silicone bipolar cord
- 1 × Detachable foot switch
- 1 × Power cord, as applicable
- User documentation / operating instructions
Applications
Designed for controlled bipolar coagulation in compatible delicate surgical procedures, including:
- Ophthalmic surgery
- Cataract surgery
- Retinal surgery
- Intraocular lens (IOL) procedures
- Wet-field ophthalmic procedures
- Microsurgical coagulation
- Small-vessel and localized bleeder coagulation
How Bipolar Coagulation Works
When the foot switch is activated, high-frequency current travels from one forceps tip to the other through the tissue held between them. This bipolar current path helps localize energy delivery to the selected area without using a monopolar patient return plate.
Professional Use & Ordering Information
For use by trained healthcare professionals in accordance with the supplied operating instructions. Confirm the required 230V or 110V input option before ordering. Reusable accessories must be cleaned, sterilized and inspected according to the manufacturer's reprocessing instructions before each use.
